Ceratizit
84112607

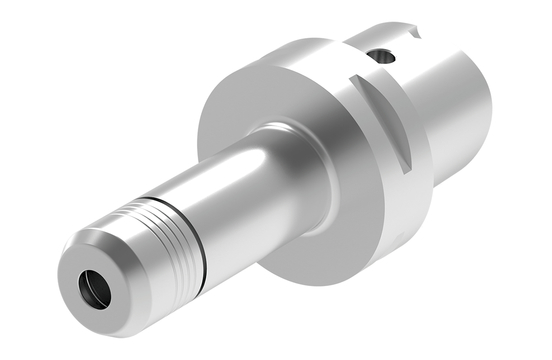

PSC - PRECISION ER COLLET CHUCK - CENTRO-P
Specifications
| Long Description | PSC - PRECISION ER COLLET CHUCK - CENTRO-P CP.ISO26623-1.PSC63.SF.ER25.1-16.130.F |
|---|---|
| Short Description | CP.ISO26623-1.PSC63.SF.ER25.1-16.130.F |
| Product Line | WNT_PERFORMANCE |
| Body Diameter (mm) | 40 |
| Connection diameter machine side (inch) | 1.732 |
| Connection Diameter Workpiece Side (Metric) | 16 |
| Flange Diameter (Inch) | 2.48 |
| Item Width (Inches) | 2.95 |
| Overall Length (mm) | 16.8 cm |
| Item Weight (lbs) | 3.435 |
| Item Height (Inches) | 2.95 |
| Protruding Length (Metric) | 130 |
| Flange Diameter (Metric) | 63 |
| Item Length (Inches) | 6.69 |
| Recording | PSC 63 |
| Functional Diameter (Metric) | 25 |
| Thread Diameter (mm) | 32 |
| Body Length (Metric) | 108 |
| Body Length (Inch) | 4.252 |
| Body Diameter (Inch) | 1.575 |
| Cooling | AD |
| Overall Length (Inch) | 6.614 |
