Ceratizit
84114404

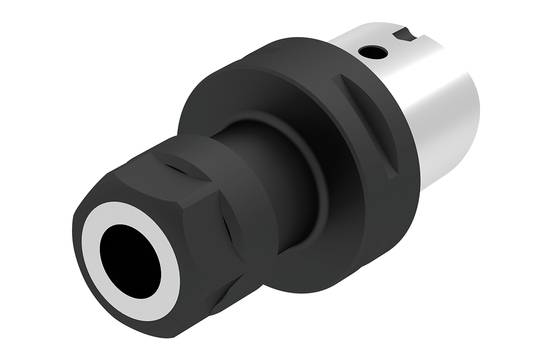

PSC - ER COLLET CHUCK
Specifications
| Long Description | PSC - ER COLLET CHUCK ISO26623-1.PSC40.SF.ER16.1,0-10.55.V.IK |
|---|---|
| Short Description | ISO26623-1.PSC40.SF.ER16.1,0-10.55.V.IK |
| Product Line | WNT_STANDARD |
| Connection diameter machine side (inch) | 1.102 |
| Connection Diameter Workpiece Side (Metric) | 10 |
| Flange Diameter (Inch) | 1.575 |
| Item Width (Inches) | 2.13 |
| Overall Length (mm) | 7.9 cm |
| Item Weight (lbs) | 0.931 |
| Item Height (Inches) | 2.13 |
| Protruding Length (Metric) | 55 |
| Flange Diameter (Metric) | 40 |
| Item Length (Inches) | 3.31 |
| Recording | PSC 40 |
| Functional Diameter (Metric) | 16 |
| Thread Diameter (mm) | 22 |
| Body Length (Metric) | 35 |
| Body Length (Inch) | 1.378 |
| Cooling | AD |
| Overall Length (Inch) | 3.11 |
