Ceratizit
84114804

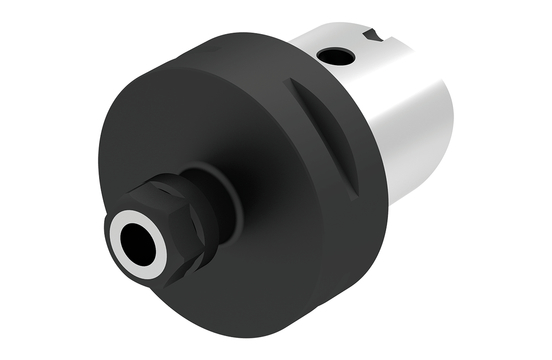

PSC - ER COLLET CHUCK
Specifications
| Long Description | PSC - ER COLLET CHUCK ISO26623-1.PSC80.SF.ER16.1,0-10.60.V.IK |
|---|---|
| Short Description | ISO26623-1.PSC80.SF.ER16.1,0-10.60.V.IK |
| Product Line | WNT_STANDARD |
| Connection diameter machine side (inch) | 2.165 |
| Connection Diameter Workpiece Side (Metric) | 10 |
| Flange Diameter (Inch) | 3.15 |
| Item Width (Inches) | 3.86 |
| Overall Length (mm) | 10.8 cm |
| Item Weight (lbs) | 4.736 |
| Item Height (Inches) | 3.86 |
| Protruding Length (Metric) | 60 |
| Flange Diameter (Metric) | 80 |
| Item Length (Inches) | 4.45 |
| Recording | PSC 80 |
| Functional Diameter (Metric) | 16 |
| Thread Diameter (mm) | 22 |
| Body Length (Metric) | 30 |
| Body Length (Inch) | 1.181 |
| Cooling | AD |
| Overall Length (Inch) | 4.252 |
