Ceratizit
8420608086

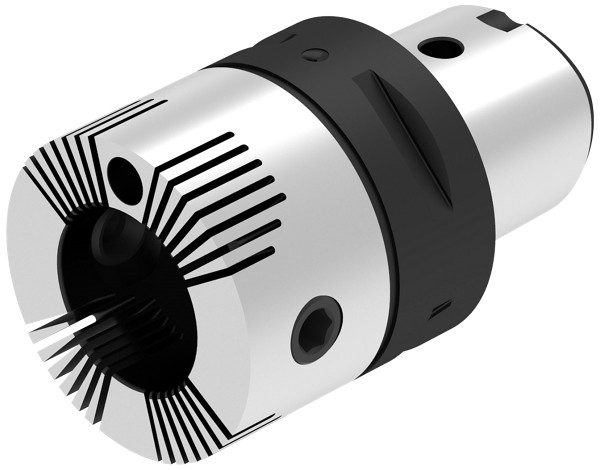

PSC TORSIONAL VIBRATION DAMPENING ADAPTER WITH ABS CONNECTION
Specifications
| Long Description | PSC TORSIONAL VIBRATION DAMPENING ADAPTER WITH ABS CONNECTION ISO26623-1PSC80.TSD.ABS80 |
|---|---|
| Short Description | ISO26623-1PSC80.TSD.ABS80 |
| Product Line | WNT_PERFORMANCE |
| Body Diameter (mm) | 80 |
| Shank Length (Inch) | 1.89 |
| Connection diameter machine side (inch) | 2.165 |
| Connection Diameter Workpiece Side (Metric) | 46 |
| Flange Diameter (Inch) | 3.15 |
| Item Width (Inches) | 3.15 |
| Item Weight (lbs) | 6.777 |
| Item Height (Inches) | 3.15 |
| Protruding Length (Metric) | 80 |
| Flange Diameter (Metric) | 80 |
| Item Length (Inches) | 5.12 |
| Recording | PSC 80 |
| Shank Length (mm) | 48 |
| Body Length (Metric) | 50 |
| Body Length (Inch) | 1.969 |
| Body Diameter (Inch) | 3.15 |
| Cooling | AD |
