Ceratizit
8422802297

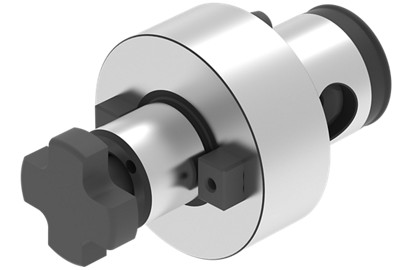

SHELL MILL ADAPTER WITH ABS CONNECTION
Specifications
| Body Diameter (Inch) | 1.969 |
|---|---|
| Overall Length (Inch) | 2.756 |
| Long Description | SHELL MILL ADAPTER WITH ABS CONNECTION MILLING CUTTER ARBOR ABS50-FA22 DIN6385 |
| Short Description | MILLING CUTTER ARBOR ABS50-FA22 DIN6385 |
| Product Line | WNT_PERFORMANCE |
| Body Diameter (mm) | 50 |
| Connection diameter machine side (inch) | 1.102 |
| Connection Diameter Workpiece Side (Metric) | 22 |
| Flange Diameter (Inch) | 1.969 |
| Item Width (Inches) | 2.56 |
| Overall Length (mm) | 7 cm |
| Item Weight (lbs) | 0.12 |
| Item Height (Inches) | 2.56 |
| Protruding Length (Metric) | 39 |
| Functional Length (Metric) | 20 |
| Flange Diameter (Metric) | 50 |
| Item Length (Inches) | 2.76 |
| Recording | ABS 50 |
| Cooling | AD |
