Ceratizit
84304304

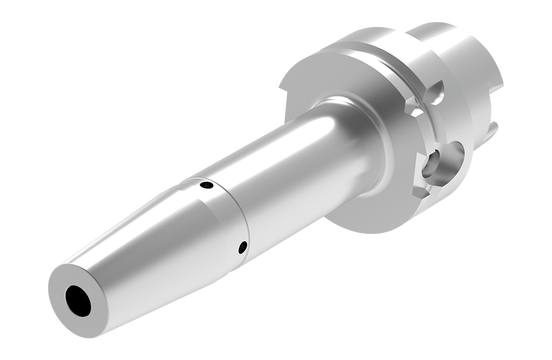

SHRINK FIT ADAPTER
Specifications
| Height | 2.95 |
|---|---|
| Width | 2.95 |
| Weight | 0.172 |
| Base Item Number | TYP_TG |
| Body Diameter (Inch) | 0.866 |
| Body Diameter (Metric) | 22 |
| Brand Name | WNT |
| Cooling | AD |
| Length | 7.56 |
| Long Description | SHRINK FIT ADAPTER TG.DIN69893A-AD63.SA.4,5°.4.160.F |
| Recording | HSK-A 63 |
| Short Description | TG.DIN69893A-AD63.SA.4,5°.4.160.F |
| Product Line | WNT_PERFORMANCE |
| Body Diameter (mm) | 22 |
| Connection Diameter Workpiece Side (Metric) | 4 |
| Item Width (Inches) | 2.95 |
| Overall Length (mm) | 19.2 cm |
| Item Weight (lbs) | 0.172 |
| Item Height (Inches) | 2.95 |
| Protruding Length (Metric) | 160 |
| Item Length (Inches) | 7.56 |
| Version | EXTRA LONG |
| Overall Length (Inch) | 7.559 |
