Ceratizit
84308116

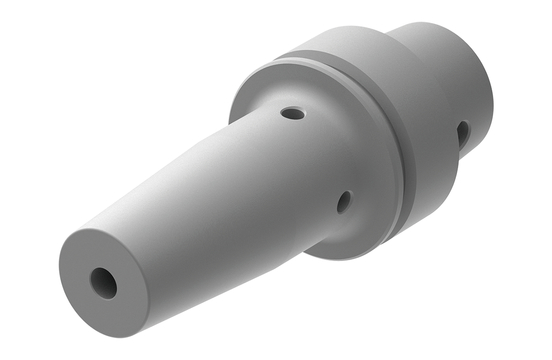

SHRINK FIT ADAPTER
Specifications
| Height | 2.13 |
|---|---|
| Width | 2.13 |
| Weight | 1.365 |
| Base Item Number | TYP_TG |
| Body Diameter (Inch) | 1.339 |
| Body Diameter (Metric) | 34 |
| Brand Name | WNT |
| Cooling | AD |
| Length | 4.33 |
| Long Description | SHRINK FIT ADAPTER TG.DIN69893E-AD40.SA.4,5°.16.90.F |
| Recording | HSK-E 40 |
| Short Description | TG.DIN69893E-AD40.SA.4,5°.16.90.F |
| Product Line | WNT_PERFORMANCE |
| Body Diameter (mm) | 34 |
| Connection Diameter Workpiece Side (Metric) | 16 |
| Item Width (Inches) | 2.13 |
| thread designation inside | M12x1 |
| Overall Length (mm) | 11 cm |
| Item Weight (lbs) | 1.365 |
| Item Height (Inches) | 2.13 |
| Protruding Length (Metric) | 90 |
| Item Length (Inches) | 4.33 |
| Version | SHORT |
| Overall Length (Inch) | 4.331 |
