Ceratizit
84320308

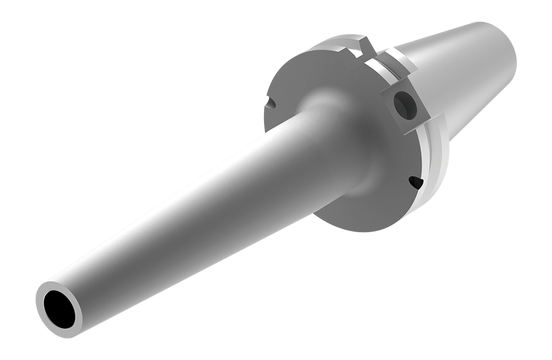

SHRINK FIT ADAPTER
Specifications
| Height | 2.95 |
|---|---|
| Width | 2.95 |
| Weight | 2.832 |
| Base Item Number | TYP_TG |
| Body Diameter (Inch) | 1.024 |
| Body Diameter (Metric) | 26 |
| Brand Name | WNT |
| Cooling | ADB |
| Length | 9.02 |
| Long Description | SHRINK FIT ADAPTER TG.DIN69871-ADB40.SA.3°.8.160.F |
| Recording | SK 40 |
| Short Description | TG.DIN69871-ADB40.SA.3°.8.160.F |
| Product Line | WNT_PERFORMANCE |
| Body Diameter (mm) | 26 |
| Connection Diameter Workpiece Side (Metric) | 8 |
| Item Width (Inches) | 2.95 |
| thread designation inside | M6 |
| Overall Length (mm) | 22.84 cm |
| Item Weight (lbs) | 2.832 |
| Item Height (Inches) | 2.95 |
| Protruding Length (Metric) | 160 |
| Item Length (Inches) | 9.02 |
| Version | EXTRA LONG |
| Overall Length (Inch) | 8.992 |
