Ceratizit
84323203

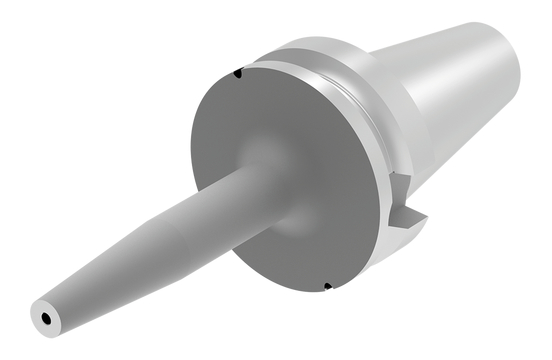

SHRINK FIT ADAPTER
Specifications
| Height | 2.95 |
|---|---|
| Width | 2.95 |
| Weight | 2.644 |
| Base Item Number | TYP_TG |
| Body Diameter (Inch) | 0.63 |
| Body Diameter (Metric) | 16 |
| Brand Name | WNT |
| Cooling | ADB |
| Length | 7.32 |
| Long Description | SHRINK FIT ADAPTER TG.MAS-BT-ADB40.SA.3°.3.120.F |
| Recording | BT 40 |
| Short Description | TG.MAS-BT-ADB40.SA.3°.3.120.F |
| Product Line | WNT_PERFORMANCE |
| Body Diameter (mm) | 16 |
| Connection Diameter Workpiece Side (Metric) | 3 |
| Item Width (Inches) | 2.95 |
| Overall Length (mm) | 18.54 cm |
| Item Weight (lbs) | 2.644 |
| Item Height (Inches) | 2.95 |
| Protruding Length (Metric) | 120 |
| Item Length (Inches) | 7.32 |
| Version | MEDIUM LONG |
| Overall Length (Inch) | 7.299 |
