Ceratizit
84325012

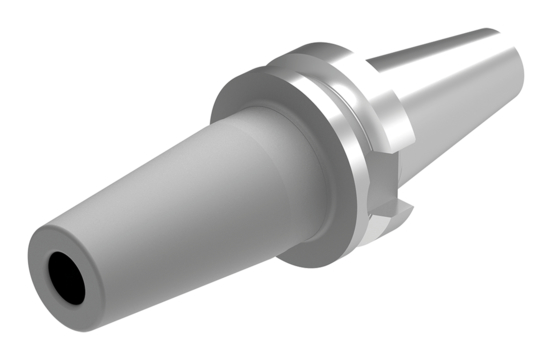

SHRINK FIT ADAPTER
Specifications
| Height | 2.56 |
|---|---|
| Width | 2.56 |
| Weight | 1.706 |
| Base Item Number | TYP_TG |
| Body Diameter (Inch) | 1.26 |
| Body Diameter (Metric) | 32 |
| Brand Name | WNT |
| Cooling | AD |
| Length | 5.28 |
| Long Description | SHRINK FIT ADAPTER TG.MAS-BT-FC-AD30.SA.4,5°.12.85.F |
| Recording | BT-FC 30 |
| Short Description | TG.MAS-BT-FC-AD30.SA.4,5°.12.85.F |
| Product Line | WNT_PERFORMANCE |
| Body Diameter (mm) | 32 |
| Connection Diameter Workpiece Side (Metric) | 12 |
| Item Width (Inches) | 2.56 |
| thread designation inside | M10x1 |
| Overall Length (mm) | 13.34 cm |
| Item Weight (lbs) | 1.706 |
| Item Height (Inches) | 2.56 |
| Protruding Length (Metric) | 85 |
| Item Length (Inches) | 5.28 |
| Version | SHORT |
| Overall Length (Inch) | 5.252 |
