Ceratizit
84424102

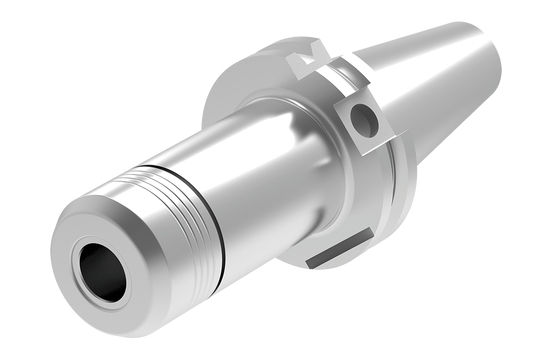

SK - PRECISION ER COLLET CHUCK - CENTRO-P
Specifications
| Long Description | SK - PRECISION ER COLLET CHUCK - CENTRO-P CP.DIN69871-AD40.SF.ER16.1-10.70.F |
|---|---|
| Short Description | CP.DIN69871-AD40.SF.ER16.1-10.70.F |
| Product Line | WNT_PERFORMANCE |
| Body Diameter (mm) | 30 |
| Connection Diameter Workpiece Side (Metric) | 10 |
| Item Width (Inches) | 2.87 |
| Item Weight (lbs) | 2.304 |
| Item Height (Inches) | 2.87 |
| Protruding Length (Metric) | 70 |
| Item Length (Inches) | 5.51 |
| Recording | SK 40 |
| Functional Diameter (Metric) | 16 |
| Thread Diameter (mm) | 22 |
| Body Diameter (Inch) | 1.181 |
| Cooling | AD |
