Chicago-Latrobe
11073

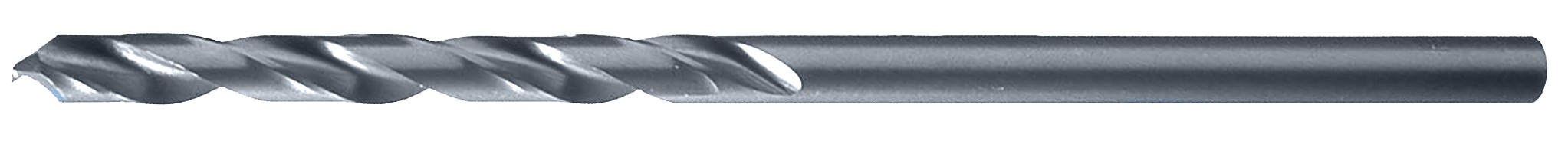

NAS-Type Aircraft Extension Drill
Specifications
| Overall Length (Metric) | 152.4 |
|---|---|
| Shank Type | Straight |
| Flute Type | Spiral |
| Diameter (Inch) | 0.089 |
| Overall Length (Inch) | 6 |
| Material | HSS |
| Diameter (Metric) | 2.26 |
| Number Of Flutes | 2 |
| Flute Length (Inch) | 1.25 |
| Shank Size (Metric) | 2.26 |
| Flute Length (Metric) | 31.75 |
| Short Description | NAS-Type Aircraft Extension Drill |
| Diameter (Decimal Inch) | 0.089 |
| Point Type | Split |
| Diameter (Wire) | 43 |
| Hand Of Spiral | Right |
| Hand Of Spiral Cut | RHS / RHC |
| Point Angle | 135 |
| Drill Construction | Heavy-Duty |
| Drill Style | Aircraft Extension Drill |
| ECCN | EAR99 |
| Set | No |
| Pack Qty | 12 |
| UNSPSC | 20111614 |
| Notes | Sizes smaller than 0.0625 do not have split point |
| Point Style | Split |
| Shank Length | 4.75 |
| Shank Length (mm) | 120.65 |
| Shank Length (Inch) | 4.75 |
| Shank Size | 0.089 |
| Surface Condition | Steam Oxide |
| Flute Length (mm) | 3.175 cm |
| Overall Length (mm) | 15.24 cm |
| Drill Size System | Wire |
| Tool Size | #43 |
