Chicago-Latrobe
11113

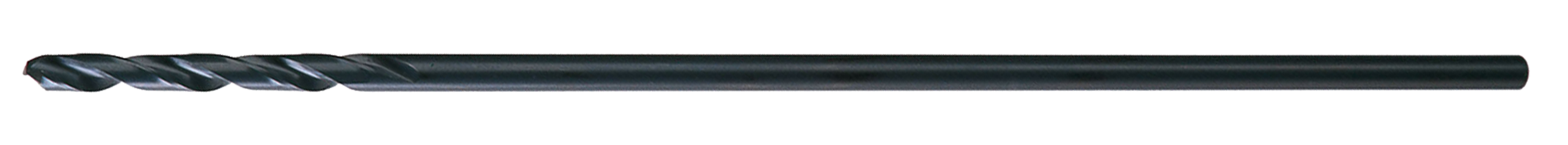

NAS-Type Aircraft Extension Drill
Specifications
| Overall Length (Metric) | 304.8 |
|---|---|
| Shank Type | Straight |
| Flute Type | Spiral |
| Diameter (Inch) | 0.328125 |
| Overall Length (Inch) | 12 |
| Material | HSS |
| Diameter (Metric) | 8.33 |
| Number Of Flutes | 2 |
| Flute Length (Inch) | 3.3125 |
| Shank Size (Metric) | 8.33 |
| Flute Length (Metric) | 84.14 |
| Short Description | NAS-Type Aircraft Extension Drill |
| Diameter (Decimal Inch) | 0.3281 |
| Point Type | Split |
| Hand Of Spiral | Right |
| Hand Of Spiral Cut | RHS / RHC |
| Point Angle | 135 |
| Drill Construction | Heavy-Duty |
| Drill Style | Aircraft Extension Drill |
| ECCN | EAR99 |
| Set | No |
| Pack Qty | 6 |
| UNSPSC | 20111614 |
| Notes | Sizes smaller than 0.0625 do not have split point |
| Point Style | Split |
| Shank Length | 8.6875 |
| Shank Length (mm) | 220.66 |
| Shank Length (Inch) | 8.6875 |
| Shank Size | 0.3281 |
| Surface Condition | Steam Oxide |
| Flute Length (mm) | 8.414 cm |
| Overall Length (mm) | 30.48 cm |
| Drill Size System | Fractional |
| Tool Size | 21/64" |
