Chicago-Latrobe
41185

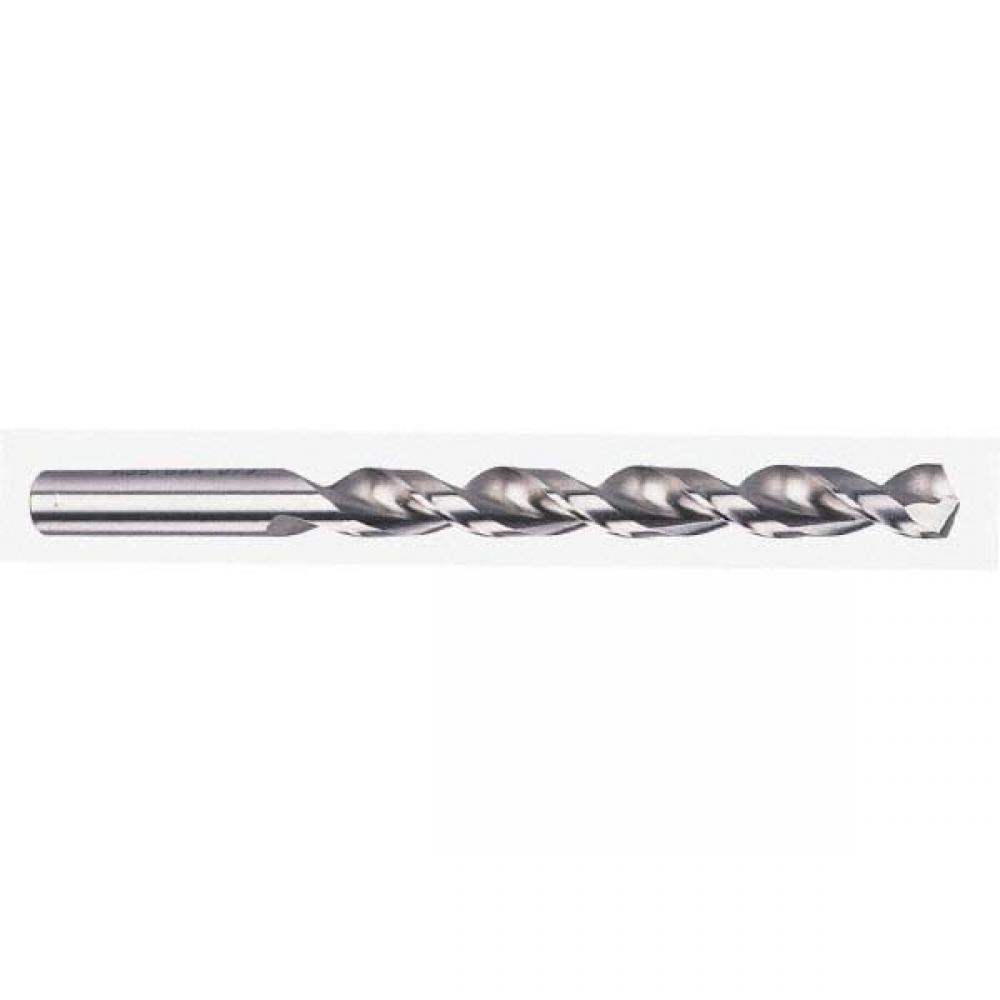

135? Wide Land Parabolic Drill
Specifications
| Number Of Flutes | 2 |
|---|---|
| Overall Length (Metric) | 114.3 |
| Diameter (Inch) | 0.316 |
| Material | HSS |
| Diameter (Metric) | 8.03 |
| Overall Length (Inch) | 4.5 |
| Point Type | Split |
| Shank Size (Metric) | 8.03 |
| Point Angle | 135 |
| Flute Type | Spiral |
| Shank Size | 0.316 |
| Shank Type | Straight |
| Diameter (Wire) | O |
| Flute Length (Metric) | 80.96 |
| Drill Construction | Wide Land Parabolic |
| Hand Of Spiral | Right |
| Hand Of Spiral Cut | RHS / RHC |
| Tool Size | O |
| Drill Style | Jobber Drill |
| Drill Size System | Letter |
| Pack Qty | 6 |
| ECCN | EAR99 |
| UNSPSC | 20111614 |
| Shank Length (Inch) | 1.3125 |
| Surface Condition | Bright |
| Flute Length (mm) | 8.096 cm |
| Overall Length (mm) | 11.43 cm |
| Point Style | Split |
| Diameter (Decimal Inch) | 0.316 |
| Shank Length (mm) | 33.34 |
| Set | No |
