Chicago-Latrobe
44930

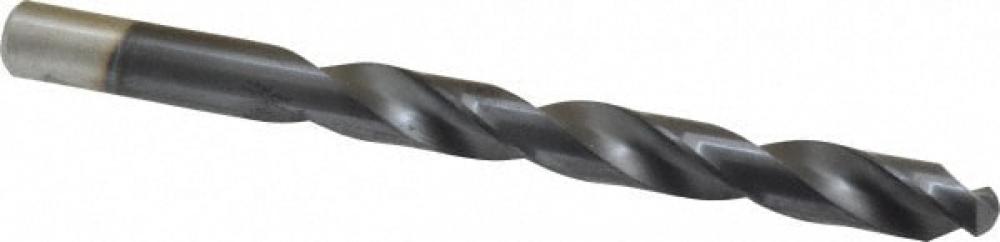

135? Heavy-Duty Cobalt Drill
Specifications
| Number Of Flutes | 2 |
|---|---|
| Overall Length (Metric) | 146.05 |
| Diameter (Inch) | 0.46875 |
| Material | HSS-CO 8% (M42) |
| Diameter (Metric) | 11.91 |
| Overall Length (Inch) | 5.75 |
| Point Type | Split |
| Shank Size (Metric) | 11.91 |
| Point Angle | 135 |
| Flute Type | Spiral |
| Shank Size | 0.4688 |
| Shank Type | Straight |
| Flute Length (Metric) | 109.54 |
| Drill Construction | Heavy-Duty |
| Hand Of Spiral | Right |
| Hand Of Spiral Cut | RHS / RHC |
| Tool Size | 15/32" |
| Drill Style | Jobber Drill |
| Drill Size System | Fractional |
| Pack Qty | 6 |
| ECCN | EAR99 |
| UNSPSC | 20111614 |
| Shank Length (Inch) | 1.4375 |
| Surface Condition | TiAlN |
| Notes | Sizes smaller than 0.0625 do not have split point |
| Flute Length (mm) | 10.954 cm |
| Overall Length (mm) | 14.605 cm |
| Point Style | Split |
| Diameter (Decimal Inch) | 0.4688 |
| Shank Length (mm) | 36.51 |
| Set | No |
