Chicago-Latrobe
47648

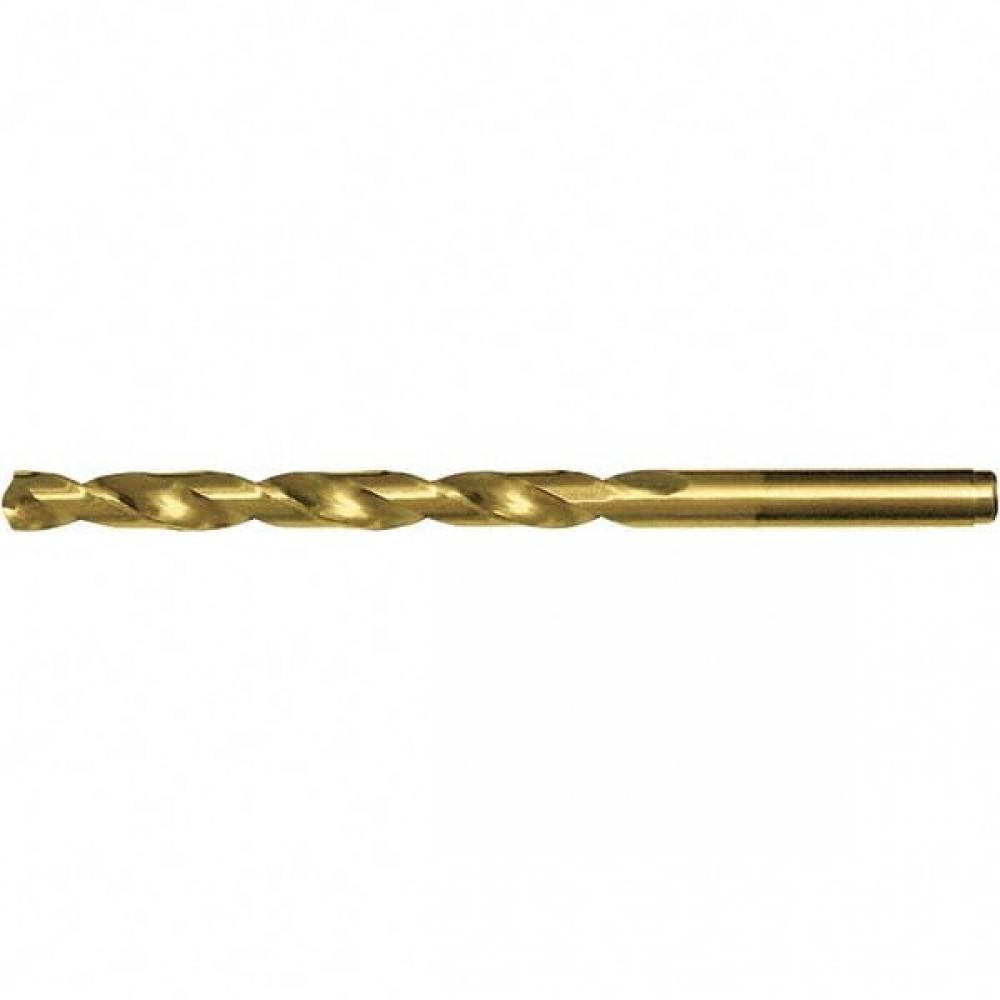

135? Heavy-Duty Cobalt Drill
Specifications
| Number Of Flutes | 2 |
|---|---|
| Overall Length (Metric) | 120.65 |
| Diameter (Inch) | 0.34375 |
| Material | HSS-CO 8% (M42) |
| Diameter (Metric) | 8.73 |
| Overall Length (Inch) | 4.75 |
| Point Type | Split |
| Shank Size (Metric) | 8.73 |
| Point Angle | 135 |
| Flute Type | Spiral |
| Shank Size | 0.3438 |
| Shank Type | Straight |
| Flute Length (Metric) | 87.31 |
| Drill Construction | Heavy-Duty |
| Hand Of Spiral | Right |
| Hand Of Spiral Cut | RHS / RHC |
| Tool Size | 11/32" |
| Drill Style | Jobber Drill |
| Drill Size System | Fractional |
| Pack Qty | 6 |
| ECCN | EAR99 |
| UNSPSC | 20111614 |
| Shank Length (Inch) | 1.3125 |
| Surface Condition | TiN |
| Notes | Sizes smaller than 0.0625 do not have split point |
| Flute Length (mm) | 8.731 cm |
| Overall Length (mm) | 12.065 cm |
| Point Style | Split |
| Diameter (Decimal Inch) | 0.3438 |
| Shank Length (mm) | 33.34 |
| Set | No |
