Chicago-Latrobe
48508

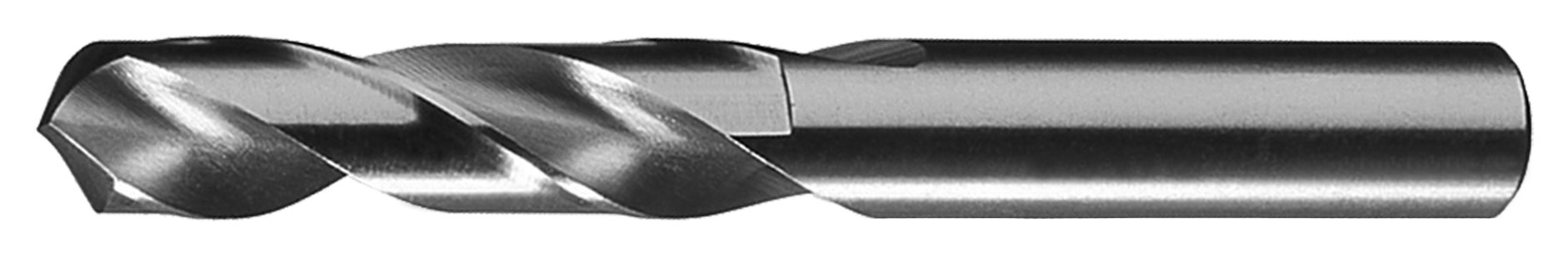

General Purpose Screw Machine Drill
Specifications
| Overall Length (Metric) | 47.63 |
|---|---|
| Diameter (Inch) | 0.125 |
| Diameter (Metric) | 3.18 |
| Point Angle | 118 |
| Flute Length (Metric) | 22.22 |
| Material | HSS |
| Short Description | General Purpose Screw Machine Drill |
| Shank Length (Inch) | 1 |
| Shank Type | Straight |
| Shank Size | 0.125 |
| Point Type | Radial |
| Surface Condition | Bright |
| Flute Length (mm) | 2.222 cm |
| Drill Style | Screw Machine Drill |
| Double Ended | No |
| Shank Length | 1 |
| UNSPSC | 20111614 |
| Overall Length (mm) | 4.763 cm |
| Flute Type | Spiral |
| Number Of Flutes | 2 |
| Point Style | Radial |
| Pack Qty | 12 |
| Hand Of Spiral | Right |
| Diameter (Decimal Inch) | 0.125 |
| Shank Length (mm) | 25.4 |
| Shank Size (Metric) | 3.17 |
| Set | No |
| Drill Size System | Fractional |
| Drill Construction | General Purpose |
| Hand Of Spiral Cut | RHS / RHC |
| Drill Point Angle | 118 |
| Tool Size | 1/8" |
| ECCN | EAR99 |
