Chicago-Latrobe
49075

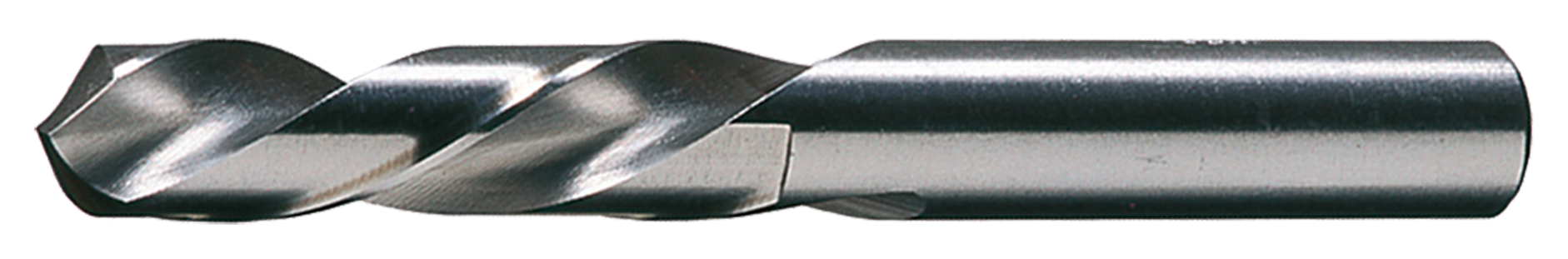

General Purpose Screw Machine Drill (LH)
Specifications
| Overall Length (Metric) | 60.32 |
|---|---|
| Diameter (Inch) | 0.2055 |
| Diameter (Metric) | 5.22 |
| Point Angle | 118 |
| Flute Length (Metric) | 31.75 |
| Material | HSS |
| Short Description | General Purpose Screw Machine Drill (LH) |
| Shank Length (Inch) | 1.125 |
| Shank Type | Straight |
| Shank Size | 0.2055 |
| Point Type | Radial |
| Surface Condition | Bright |
| Diameter (Wire) | 5 |
| Flute Length (mm) | 3.175 cm |
| Drill Style | Screw Machine Drill |
| Double Ended | No |
| Shank Length | 1.125 |
| UNSPSC | 20111614 |
| Overall Length (mm) | 6.032 cm |
| Flute Type | Spiral |
| Number Of Flutes | 2 |
| Point Style | Radial |
| Pack Qty | 12 |
| Hand Of Spiral | Left |
| Diameter (Decimal Inch) | 0.2055 |
| Shank Length (mm) | 28.57 |
| Shank Size (Metric) | 5.22 |
| Set | No |
| Drill Size System | Wire |
| Drill Construction | General Purpose |
| Hand Of Spiral Cut | LHS / LHC |
| Drill Point Angle | 118 |
| Tool Size | #5 |
| ECCN | EAR99 |
