Chicago-Latrobe
49237

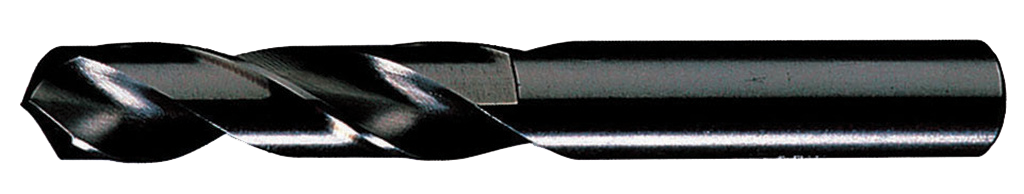

Heavy-Duty Screw Machine Drill
Specifications
| Overall Length (Metric) | 66.67 |
|---|---|
| Diameter (Inch) | 0.257 |
| Diameter (Metric) | 6.53 |
| Point Angle | 135 |
| Flute Length (Metric) | 36.51 |
| Material | HSS |
| Short Description | Heavy-Duty Screw Machine Drill |
| Shank Length (Inch) | 1.1875 |
| Shank Type | Straight |
| Shank Size | 0.257 |
| Point Type | Split |
| Surface Condition | Steam Oxide |
| Diameter (Wire) | F |
| Notes | Sizes smaller than 0.0625 do not have split point |
| Flute Length (mm) | 3.651 cm |
| Drill Style | Screw Machine Drill |
| Double Ended | No |
| Shank Length | 1.1875 |
| UNSPSC | 20111614 |
| Overall Length (mm) | 6.667 cm |
| Flute Type | Spiral |
| Number Of Flutes | 2 |
| Point Style | Split |
| Pack Qty | 12 |
| Hand Of Spiral | Right |
| Diameter (Decimal Inch) | 0.257 |
| Shank Length (mm) | 30.16 |
| Shank Size (Metric) | 6.53 |
| Set | No |
| Drill Size System | Letter |
| Drill Construction | Heavy-Duty |
| Hand Of Spiral Cut | RHS / RHC |
| Drill Point Angle | 135 |
| Tool Size | F |
| ECCN | EAR99 |
