Chicago-Latrobe
50722

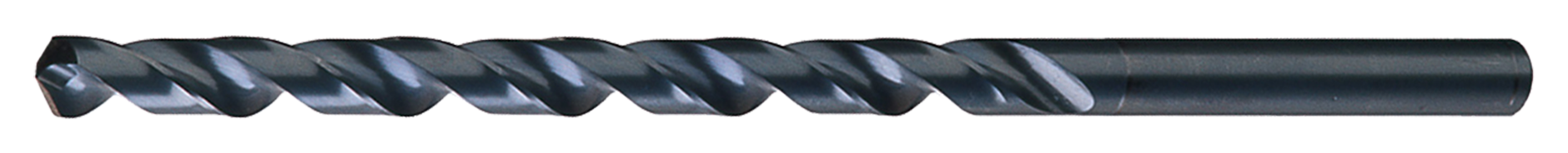

Heavy-Duty Extra Long Drill
Specifications
| Shank Type | Straight |
|---|---|
| Overall Length (Metric) | 254 |
| Shank Size (Metric) | 4.76 |
| Material | HSS |
| Diameter (Metric) | 4.76 |
| Number Of Flutes | 2 |
| Flute Length (Metric) | 190.5 |
| Diameter (Inch) | 0.1875 |
| Point Type | Notched |
| Short Description | Heavy-Duty Extra Long Drill |
| Flute Type | Spiral |
| Point Angle | 118 |
| Hand Of Spiral | Right |
| Shank Length (mm) | 63.5 |
| Drill Construction | General Purpose |
| Point Style | Notched |
| Drill Size System | Fractional |
| Drill Style | Extra Length Drill |
| ECCN | EAR99 |
| Set | No |
| Pack Qty | 1 |
| UNSPSC | 20111614 |
| Shank Size | 0.1875 |
| Drill Point Angle | 118 |
| Hand Of Spiral Cut | RHS / RHC |
| Shank Length | 2.5 |
| Shank Length (Inch) | 2.5 |
| Surface Condition | Steam Oxide |
| Flute Length (mm) | 19.05 cm |
| Double Ended | No |
| Overall Length (mm) | 25.4 cm |
| Diameter (Decimal Inch) | 0.1875 |
| Tool Size | 3/16" |
