Chicago-Latrobe
50874

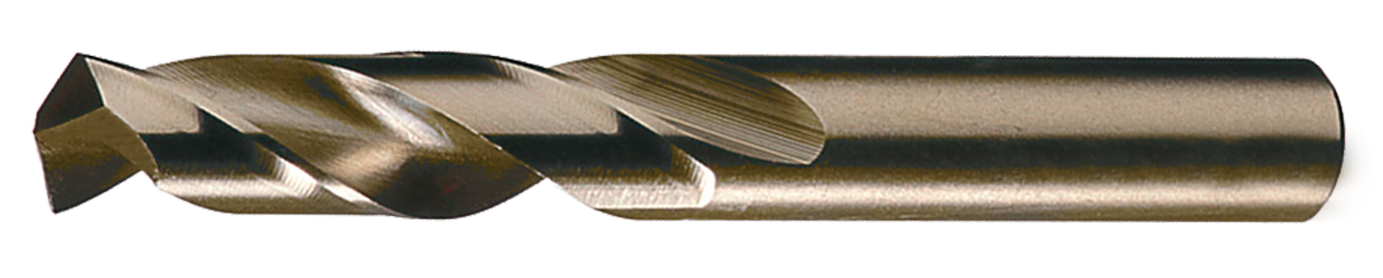

Heavy-Duty Cobalt Screw Machine Drill
Specifications
| Overall Length (Metric) | 53.97 |
|---|---|
| Diameter (Inch) | 0.166 |
| Diameter (Metric) | 4.22 |
| Point Angle | 135 |
| Flute Length (Metric) | 26.99 |
| Material | HSS-CO 8% (M42) |
| Short Description | Heavy-Duty Cobalt Screw Machine Drill |
| Shank Length (Inch) | 1.0625 |
| Shank Type | Straight |
| Shank Size | 0.166 |
| Point Type | Split |
| Surface Condition | Straw |
| Diameter (Wire) | 19 |
| Notes | Sizes smaller than 0.0625 do not have split point |
| Flute Length (mm) | 2.699 cm |
| Drill Style | Screw Machine Drill |
| Double Ended | No |
| Shank Length | 1.0625 |
| UNSPSC | 20111614 |
| Overall Length (mm) | 5.397 cm |
| Flute Type | Spiral |
| Number Of Flutes | 2 |
| Point Style | Split |
| Pack Qty | 12 |
| Hand Of Spiral | Right |
| Diameter (Decimal Inch) | 0.166 |
| Shank Length (mm) | 26.99 |
| Shank Size (Metric) | 4.22 |
| Set | No |
| Drill Size System | Wire |
| Drill Construction | Heavy-Duty |
| Hand Of Spiral Cut | RHS / RHC |
| Drill Point Angle | 135 |
| Tool Size | #19 |
| ECCN | EAR99 |
