Chicago-Latrobe
53166

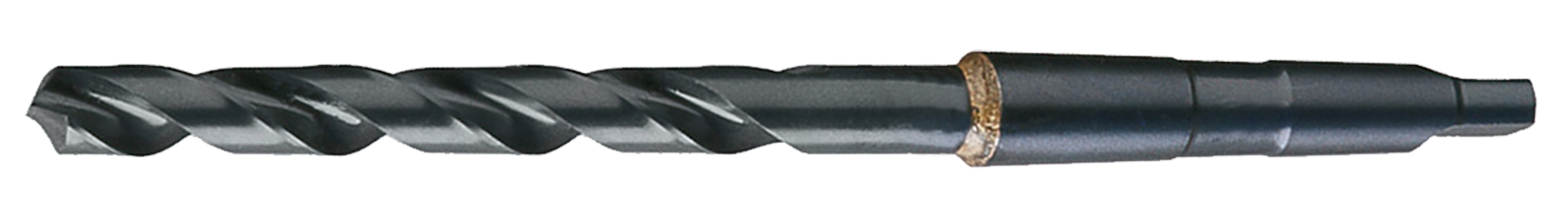

General Purpose Taper Shank Drill
Specifications
| Flute Length (Metric) | 165.1 |
|---|---|
| Diameter (Inch) | 1.03125 |
| Material | HSS |
| Flute Length (Inch) | 6.5 |
| Number Of Flutes | 2 |
| Overall Length (Metric) | 282.57 |
| Flute Type | Spiral |
| Diameter (Metric) | 26.2 |
| Short Description | General Purpose Taper Shank Drill |
| Shank Type | #3 Morse Taper |
| Point Type | Radial |
| Point Angle | 118 |
| Hand Of Spiral | Right |
| Hand Of Spiral Cut | RHS / RHC |
| Drill Construction | General Purpose |
| Drill Style | Taper Shank Drill |
| Tool Size | 1-1/32" |
| Point Style | Radial |
| Drill Point Angle | 118 |
| Pack Qty | 1 |
| ECCN | EAR99 |
| UNSPSC | 20111614 |
| Surface Condition | Steam Oxide |
| Flute Length (mm) | 16.51 cm |
| Double Ended | No |
| Shank Length | 4.625 |
| Overall Length (mm) | 28.257 cm |
| Diameter (Decimal Inch) | 1.0313 |
| Shank Length (mm) | 117.47 |
| Set | No |
| Drill Size System | Fractional |
