Chicago-Latrobe
55111

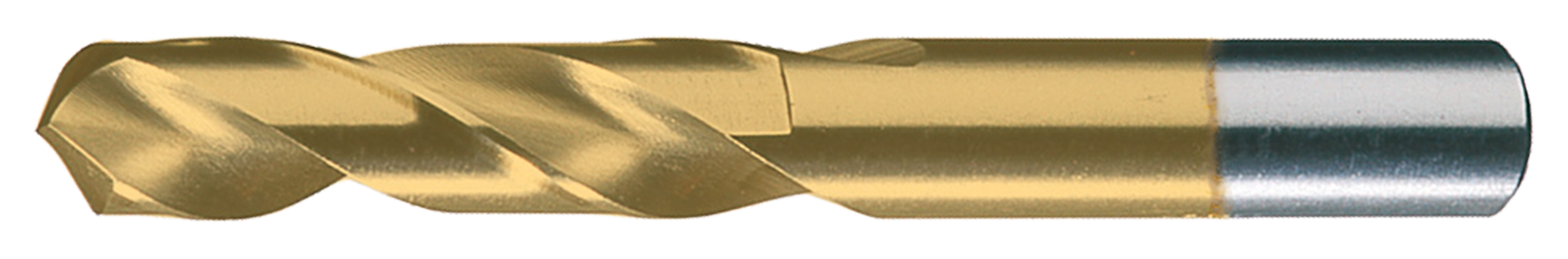

General Purpose Screw Machine Drill
Specifications
| Overall Length (Metric) | 69.85 |
|---|---|
| Diameter (Inch) | 0.296875 |
| Diameter (Metric) | 7.54 |
| Point Angle | 118 |
| Flute Length (Metric) | 39.69 |
| Material | HSS |
| Short Description | General Purpose Screw Machine Drill |
| Shank Length (Inch) | 1.1875 |
| Shank Type | Straight |
| Shank Size | 0.2969 |
| Point Type | Radial |
| Surface Condition | TiN |
| Flute Length (mm) | 3.969 cm |
| Drill Style | Screw Machine Drill |
| Double Ended | No |
| Shank Length | 1.1875 |
| UNSPSC | 20111614 |
| Overall Length (mm) | 6.985 cm |
| Flute Type | Spiral |
| Number Of Flutes | 2 |
| Point Style | Radial |
| Pack Qty | 6 |
| Hand Of Spiral | Right |
| Diameter (Decimal Inch) | 0.2969 |
| Shank Length (mm) | 30.16 |
| Shank Size (Metric) | 7.54 |
| Set | No |
| Drill Size System | Fractional |
| Drill Construction | General Purpose |
| Hand Of Spiral Cut | RHS / RHC |
| Drill Point Angle | 118 |
| Tool Size | 19/64" |
| ECCN | EAR99 |
