Chicago-Latrobe
68804

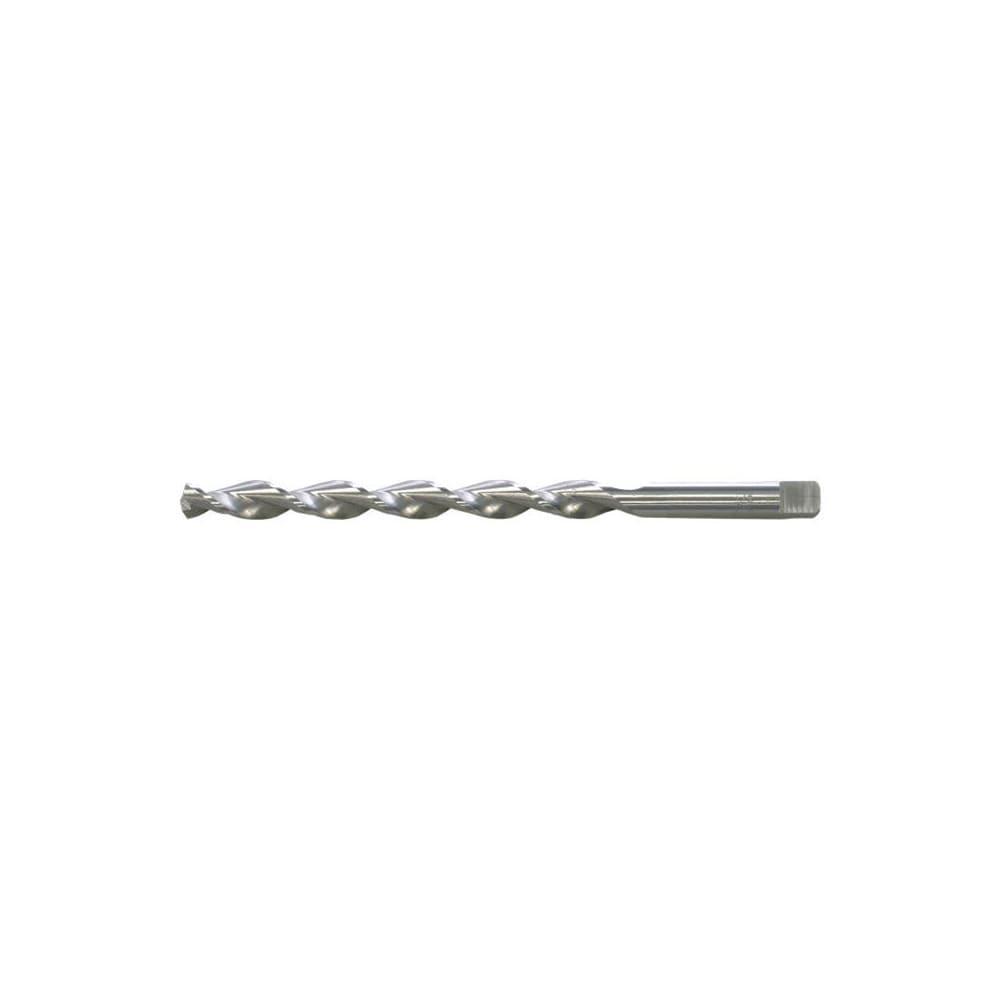

Deep Hole Parabolic Taper Length Drill
Specifications
| Shank Length (Inch) | 1 |
|---|---|
| Overall Length (Metric) | 76.2 |
| Diameter (Inch) | 0.0625 |
| Material | HSS |
| Number Of Flutes | 2 |
| Diameter (Metric) | 1.59 |
| Shank Size (Metric) | 1.59 |
| Flute Length (Metric) | 50.8 |
| Flute Type | Spiral |
| Shank Size | 0.0625 |
| Shank Type | Tanged |
| Point Type | Notched |
| Point Angle | 135 |
| Hand Of Spiral | Right |
| Shank Length | 1 |
| Tool Size | 1/16" |
| Drill Point Angle | 135 |
| Drill Style | Taper Length Drill |
| Point Style | Notched |
| Double Ended | No |
| Hand Of Spiral Cut | RHS / RHC |
| Set | No |
| Pack Qty | 12 |
| ECCN | EAR99 |
| UNSPSC | 20111614 |
| Surface Condition | Bright |
| Flute Length (mm) | 5.08 cm |
| Overall Length (mm) | 7.62 cm |
| Diameter (Decimal Inch) | 0.0625 |
| Shank Length (mm) | 25.4 |
| Drill Size System | Fractional |
| Drill Construction | Parabolic |
