Chicago-Latrobe
68811

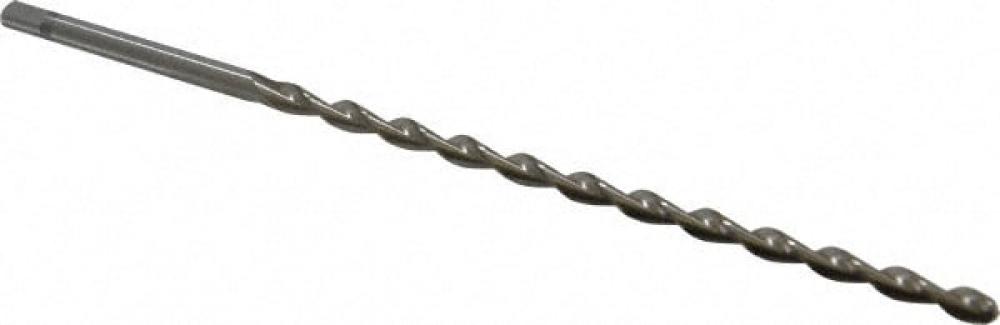

Deep Hole Parabolic Taper Length Drill
Specifications
| Shank Length (Inch) | 1.625 |
|---|---|
| Overall Length (Metric) | 146.05 |
| Diameter (Inch) | 0.171875 |
| Material | HSS |
| Number Of Flutes | 2 |
| Diameter (Metric) | 4.37 |
| Shank Size (Metric) | 4.37 |
| Flute Length (Metric) | 104.77 |
| Flute Type | Spiral |
| Shank Size | 0.1719 |
| Shank Type | Tanged |
| Point Type | Notched |
| Point Angle | 135 |
| Hand Of Spiral | Right |
| Shank Length | 1.625 |
| Tool Size | 11/64" |
| Drill Point Angle | 135 |
| Drill Style | Taper Length Drill |
| Point Style | Notched |
| Double Ended | No |
| Hand Of Spiral Cut | RHS / RHC |
| Set | No |
| Pack Qty | 12 |
| ECCN | EAR99 |
| UNSPSC | 20111614 |
| Surface Condition | Bright |
| Flute Length (mm) | 10.477 cm |
| Overall Length (mm) | 14.605 cm |
| Diameter (Decimal Inch) | 0.1719 |
| Shank Length (mm) | 41.27 |
| Drill Size System | Fractional |
| Drill Construction | Parabolic |
