Cle-Force
C69010

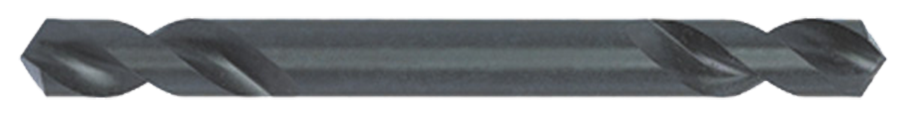

Double End Drill
Specifications
| Point Angle | 135 |
|---|---|
| Overall Length (Metric) | 49 |
| Material | HSS |
| Flute Length (Metric) | 12 |
| Shank Size (Metric) | 3.26 |
| Diameter (Metric) | 3.26 |
| Diameter | 0.1284 |
| Short Description | Double End Drill |
| Flute Type | Spiral |
| Flute Length | 0.4724 |
| Shank Size | 0.1284 |
| Hand Of Spiral | Right |
| Hand Of Spiral Cut | RHS / RHC |
| Shank Length | 1.4567 |
| Measurement System | Metric |
| Double Ended | Yes |
| Drill Construction | Heavy-Duty |
| Drill Style | Double End Drill |
| ECCN | EAR99 |
| Set | No |
| Pack Qty | 12 |
| UNSPSC | 20111614 |
| Shank Length (Metric) | 37 |
| Surface Condition | Steam Oxide |
| Overall Length (Decimal Inch) | 1.9291 |
| Shank Configuration | Straight |
| Point Style | Split |
| Diameter (Decimal Inch) | 0.1284 |
| Drill Size System | Metric |
| Tool Size | 3.26mm |
