Cle-Force
C69017

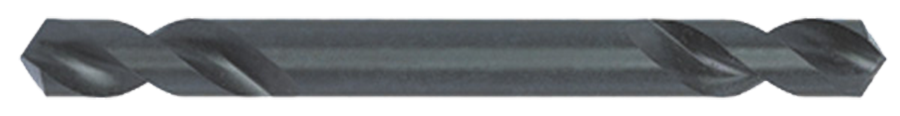

Double End Drill
Specifications
| Point Angle | 135 |
|---|---|
| Overall Length (Metric) | 62 |
| Material | HSS |
| Flute Length (Metric) | 17.5 |
| Shank Size (Metric) | 4.9 |
| Diameter (Metric) | 4.9 |
| Diameter | 0.1929 |
| Short Description | Double End Drill |
| Flute Type | Spiral |
| Flute Length | 0.689 |
| Shank Size | 0.1929 |
| Hand Of Spiral | Right |
| Hand Of Spiral Cut | RHS / RHC |
| Shank Length | 1.7519 |
| Measurement System | Metric |
| Double Ended | Yes |
| Drill Construction | Heavy-Duty |
| Drill Style | Double End Drill |
| ECCN | EAR99 |
| Set | No |
| Pack Qty | 12 |
| UNSPSC | 20111614 |
| Shank Length (Metric) | 44.5 |
| Surface Condition | Steam Oxide |
| Overall Length (Decimal Inch) | 2.4409 |
| Shank Configuration | Straight |
| Point Style | Split |
| Diameter (Decimal Inch) | 0.1929 |
| Drill Size System | Metric |
| Tool Size | 4.90mm |
