Cle-Force
C69518

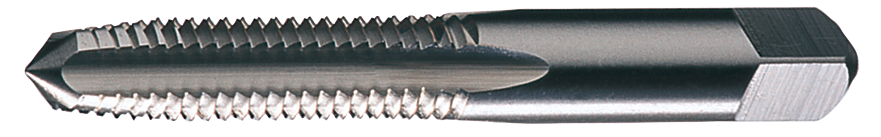

Plug Chamfer Carbon Steel Hand Tap
Specifications
| Material | Carbon Steel |
|---|---|
| Overall Length (Metric) | 53.97 |
| Flute Type | Straight |
| Diameter (Metric) | 4 |
| Short Description | Plug Chamfer Carbon Steel Hand Tap |
| Diameter | 0.1575 |
| Measurement System | Metric |
| Tool Size | M4x0.7 |
| Pack Qty | 1 |
| ECCN | EAR99 |
| UNSPSC | 27112806 |
| Shank Size (Metric) | 4.27 |
| Shank Size | 0.168 |
| Surface Condition | Bright |
| Tap Style | Straight Flute Hand Tap |
| Double Ended | No |
| Tap Ground Threads | Yes |
| Tap Type | Hand Tap |
| Tap Interrupted Thread | No |
| Thread Pitch | 0.7 |
| Overall Length (Decimal Inch) | 2.125 |
| Thread Creation | Thread Cutting |
| Tap Blank Construction | USCTI Table 302 |
| Shank Square Length | 0.25 |
| Thread Length | 0.75 |
| Shank Configuration | Straight w/ Square |
| Tap Truncated Threads | No |
| Thread Form | Metric |
| Tap Spiral Point | No |
| Operation Type | Bottoming Hole |
| Diameter (Decimal Inch) | 0.1575 |
| Application | Maintenance |
| Set | No |
| Thread Size Decimal Equiv | 0.1575 |
| Depth of Cut | 1.5 |
| Tap Construction | Standard |
| Material Application | N: Non-ferrous Metal;P: Steel |
