Cle-Line
C20286

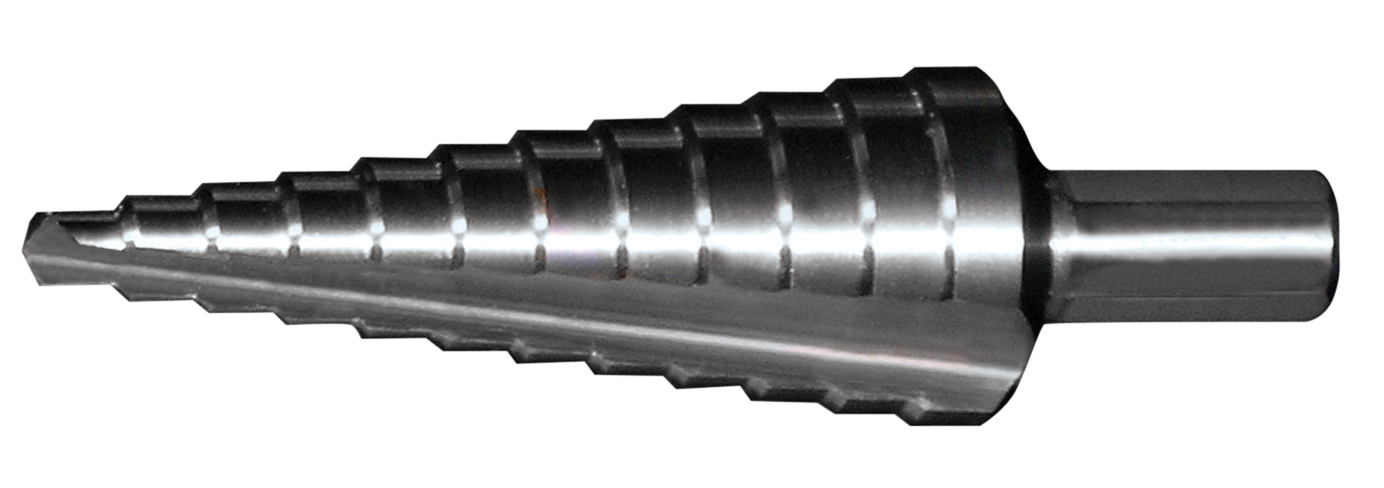

Step Drill
Specifications
| Point Angle | 118 |
|---|---|
| Short Description | Step Drill |
| Shank Size | 0.25 |
| Surface Condition | Bright |
| Notes | 1/8"-1/2" x 1/32" |
| Material | HSS |
| Drill Style | Step Drill |
| Shank Length | 3.125 |
| UNSPSC | 20111614 |
| Overall Length (Metric) | 79.38 |
| Overall Length (Decimal Inch) | 3.125 |
| Flute Type | Straight |
| Shank Configuration | Reduced w/ 3 Flats |
| Point Style | Split |
| Pack Qty | 1 |
| Shank Length (Metric) | 79.38 |
| Shank Size (Metric) | 6.35 |
| Set | No |
| Drill Size System | Wire |
| Drill Construction | Multi Stepped Drill |
| Hand Of Spiral Cut | RHC |
| ECCN | EAR99 |
