Cle-Line
C62077

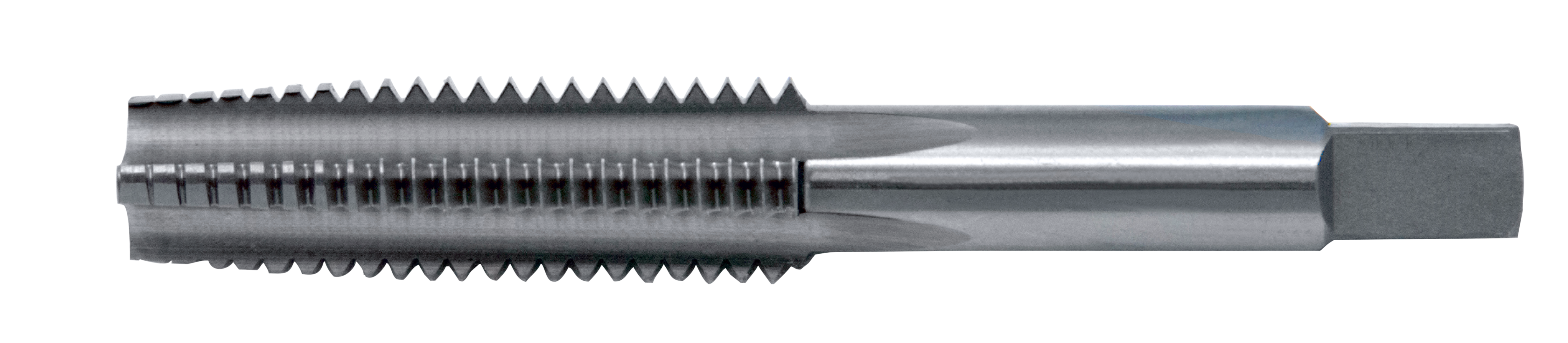

Taper Chamfer Hand Tap
Specifications
| Material | HSS |
|---|---|
| Flute Type | Straight |
| Diameter (Metric) | 15.88 |
| Short Description | Taper Chamfer Hand Tap |
| Diameter | 0.625 |
| Measurement System | Imperial |
| Tool Size | 5/8-11 UNC |
| Pack Qty | 1 |
| ECCN | EAR99 |
| UNSPSC | 27112806 |
| Shank Size | 0.48 |
| Surface Condition | Bright |
| Tap Style | Straight Flute Hand Tap |
| Double Ended | No |
| Tap Ground Threads | Yes |
| Tap Type | Hand Tap |
| Tap Interrupted Thread | No |
| Thread Pitch | 11 |
| Overall Length (Decimal Inch) | 3.8125 |
| Thread Creation | Thread Cutting |
| Tap Blank Construction | USCTI Table 302 |
| Tap Limit | H3 |
| Shank Square Length | 0.5625 |
| Thread Length | 1.8125 |
| Shank Configuration | Straight w/ Square |
| Tap Truncated Threads | No |
| Thread Form | UNC |
| Tap Spiral Point | No |
| Operation Type | Bottoming Hole;Through Hole |
| Diameter (Decimal Inch) | 0.625 |
| Application | Maintenance |
| Set | No |
| Thread Size Decimal Equiv | 0.625 |
| Depth of Cut | 1.5 |
| Tap Construction | Standard |
| Material Application | K: Cast Iron;N: Non-ferrous Metal;P: Steel |
