Cleveland
B40176

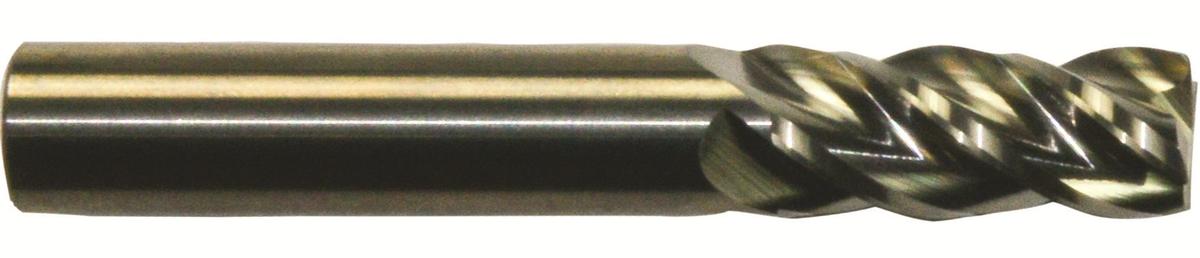

4-Flute Variable Index End Mill
Specifications
| Material | Carbide |
|---|---|
| Overall Length (Metric) | 76.2 |
| Short Description | 4-Flute Variable Index End Mill |
| Double Ended | No |
| Diameter | 0.3125 |
| Shank Size | 0.3125 |
| Shank Size (Metric) | 7.94 |
| Center Cutting | true |
| Diameter (Metric) | 7.94 |
| Application | High Performance |
| Mill Construction | Variable Index |
| Surface Condition | Bright |
| UNSPSC | 27112803 |
| Overall Length (Decimal Inch) | 3 |
| Mill End Style | Corner Radius |
| Flute Type | Spiral |
| Shank Configuration | Straight |
| Pack Qty | 1 |
| Hand Of Spiral | Right |
| Diameter (Decimal Inch) | 0.3125 |
| Set | No |
| Hand Of Spiral Cut | RHS / RHC |
| Tool Size | 5/16" x 5/16" x 1-1/4" x 3" |
| ECCN | EAR99 |
