Cleveland
B60428

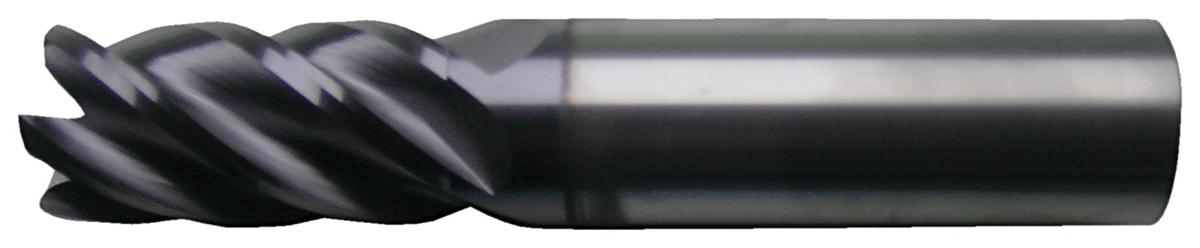

5-Flute High-Performance End Mill for Ferrous Materials
Specifications
| Material | Carbide |
|---|---|
| Short Description | 5-Flute High-Performance End Mill for Ferrous Materials |
| Double Ended | No |
| Diameter | 0.625 |
| Shank Size | 0.625 |
| Center Cutting | true |
| Diameter (Metric) | 15.88 |
| Application | High Performance |
| Mill Construction | Variable Index |
| Surface Condition | TiAlN |
| UNSPSC | 27112803 |
| Overall Length (Decimal Inch) | 5 |
| Mill End Style | Corner Radius |
| Flute Type | Spiral |
| Shank Configuration | Straight |
| Pack Qty | 1 |
| Hand Of Spiral | Right |
| Diameter (Decimal Inch) | 0.625 |
| Set | No |
| Hand Of Spiral Cut | RHS / RHC |
| Tool Size | 5/8" x 5/8" x 2-1/4" x 5" |
| ECCN | EAR99 |
