Cleveland
B68310

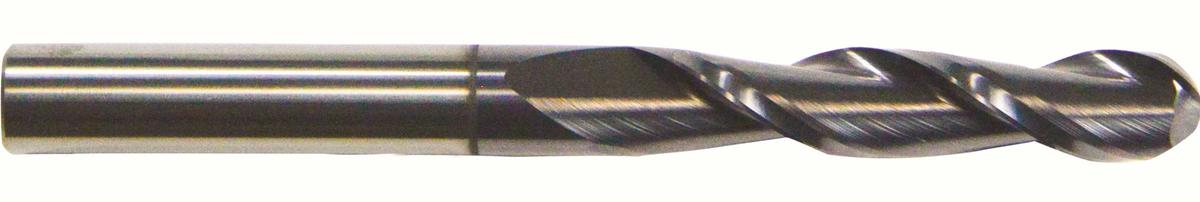

2-Flute Ball Nose Single End General-Purpose End Mill
Specifications
| Diameter (Metric) | 11.11 |
|---|---|
| Double Ended | No |
| Material | Carbide |
| Flute Type | Spiral |
| Short Description | 2-Flute Ball Nose Single End General-Purpose End Mill |
| Diameter (Decimal Inch) | 0.4375 |
| Hand Of Spiral | Right |
| Hand Of Spiral Cut | RHS / RHC |
| Mill Construction | General Purpose |
| Center Cutting | true |
| Tool Size | 7/16" x 7/16" x 2" x 4" |
| Mill End Style | Ball Nose |
| Application | General Purpose |
| ECCN | EAR99 |
| Set | No |
| Pack Qty | 1 |
| UNSPSC | 27112803 |
| Shank Size | 0.4375 |
| Diameter | 0.4375 |
| Surface Condition | TiAlN |
| Overall Length (Decimal Inch) | 4 |
| Shank Configuration | Straight |
