Cleveland
C04537

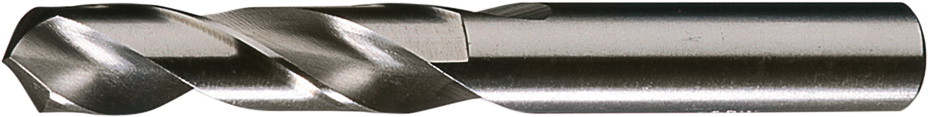

General-Purpose Screw Machine Drill
Specifications
| Overall Length (Metric) | 71.44 |
|---|---|
| Diameter (Metric) | 7.67 |
| Point Angle | 118 |
| Flute Length (Metric) | 41.27 |
| Material | HSS |
| Short Description | General-Purpose Screw Machine Drill |
| Shank Length (Inch) | 1.1875 |
| Flute Length | 1.625 |
| Shank Type | Straight |
| Shank Size | 0.302 |
| Point Type | Radial |
| Surface Condition | Bright |
| Diameter (Wire) | N |
| Flute Length (mm) | 4.127 cm |
| Drill Style | Screw Machine Drill |
| Double Ended | No |
| Shank Length | 1.1875 |
| UNSPSC | 20111614 |
| Overall Length (mm) | 7.144 cm |
| Flute Type | Spiral |
| Shank Configuration | Straight |
| Point Style | Radial |
| Pack Qty | 5 |
| Hand Of Spiral | Right |
| Shank Length (Metric) | 30.16 |
| Measurement System | Imperial |
| Diameter (Decimal Inch) | 0.302 |
| Shank Length (mm) | 30.16 |
| Shank Size (Metric) | 7.67 |
| Diameter | 0.302 |
| Set | No |
| Drill Size System | Letter |
| Drill Construction | General Purpose |
| Hand Of Spiral Cut | RHS / RHC |
| Drill Point Angle | 118 |
| Tool Size | N |
| ECCN | EAR99 |
