Cleveland
C08179

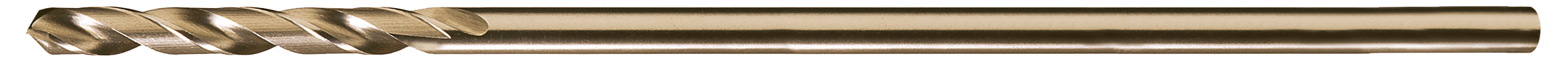

NAS907 Type J Cobalt Heavy-Duty 12" Extended Length Drill
Specifications
| Overall Length (Metric) | 152.4 |
|---|---|
| Flute Type | Spiral |
| Material | HSS-CO 8% (M42) |
| Diameter (Metric) | 4.5 |
| Flute Length (Inch) | 2.1875 |
| Shank Size (Metric) | 4.5 |
| Flute Length (Metric) | 55.56 |
| Short Description | NAS907 Type J Cobalt Heavy-Duty 12" Extended Length Drill |
| Diameter | 0.177 |
| Diameter (Decimal Inch) | 0.177 |
| Point Type | Split |
| Diameter (Wire) | 16 |
| Hand Of Spiral | Right |
| Hand Of Spiral Cut | RHS / RHC |
| Point Angle | 135 |
| Drill Construction | NAS 907 TYPE J |
| Shank Length (Metric) | 96.84 |
| Drill Style | Aircraft Extension Drill |
| Measurement System | Imperial |
| ECCN | EAR99 |
| Set | No |
| Pack Qty | 12 |
| UNSPSC | 20111614 |
| Point Style | Split |
| Shank Length | 3.8125 |
| Shank Length (mm) | 96.84 |
| Shank Length (Inch) | 3.8125 |
| Flute Length | 2.1875 |
| Shank Size | 0.177 |
| Surface Condition | Straw |
| Flute Length (mm) | 5.556 cm |
| Overall Length (Decimal Inch) | 6 |
| Overall Length (mm) | 15.24 cm |
| Shank Configuration | Straight |
| Drill Size System | Wire |
| Tool Size | #16 |
