Cleveland
C09658

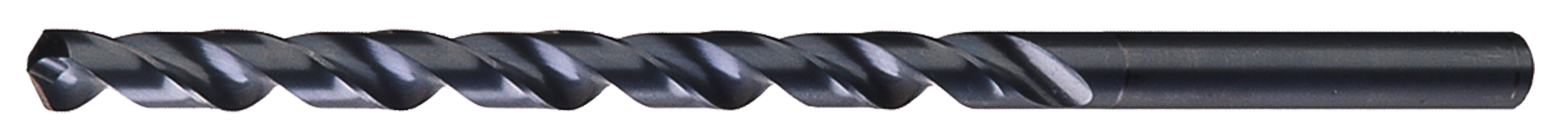

Extra Length Drill
Specifications
| Shank Type | Straight |
|---|---|
| Overall Length (Metric) | 203.2 |
| Shank Size (Metric) | 3.57 |
| Material | HSS |
| Diameter (Metric) | 3.57 |
| Flute Length (Metric) | 139.7 |
| Point Type | Radial |
| Short Description | Extra Length Drill |
| Diameter | 0.140625 |
| Flute Type | Spiral |
| Point Angle | 118 |
| Hand Of Spiral | Right |
| Shank Length (mm) | 63.5 |
| Drill Construction | General Purpose |
| Point Style | Radial |
| Measurement System | Imperial |
| Drill Size System | Fractional |
| Shank Configuration | Straight |
| Drill Style | Extra Length Drill |
| ECCN | EAR99 |
| Set | No |
| Pack Qty | 1 |
| UNSPSC | 20111614 |
| Flute Length | 5.5 |
| Shank Size | 0.1406 |
| Shank Length (Metric) | 63.5 |
| Drill Point Angle | 118 |
| Hand Of Spiral Cut | RHS / RHC |
| Shank Length | 2.5 |
| Shank Length (Inch) | 2.5 |
| Surface Condition | Steam Oxide |
| Flute Length (mm) | 13.97 cm |
| Overall Length (mm) | 20.32 cm |
| Diameter (Decimal Inch) | 0.1406 |
| Tool Size | 9/64" |
