Cleveland
C12117

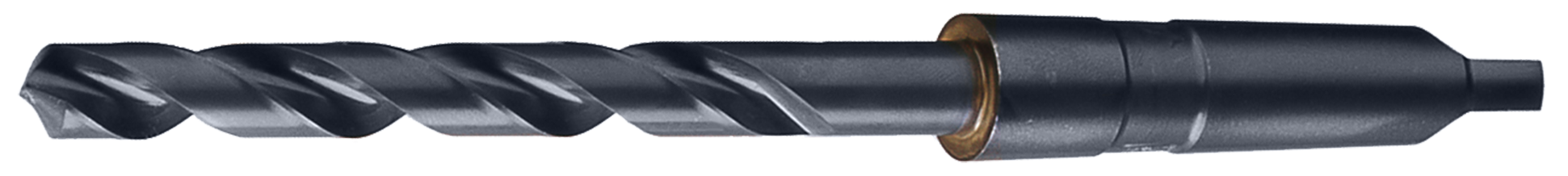

Taper Shank Taper Length Drill
Specifications
| Flute Length (Metric) | 79.38 |
|---|---|
| Material | HSS |
| Flute Length (Inch) | 3.125 |
| Overall Length (Metric) | 161.92 |
| Flute Type | Spiral |
| Diameter (Metric) | 7.54 |
| Short Description | Taper Shank Taper Length Drill |
| Diameter | 0.296875 |
| Point Type | Radial |
| Point Angle | 118 |
| Hand Of Spiral | Right |
| Shank Length (Metric) | 82.55 |
| Hand Of Spiral Cut | RHS / RHC |
| Drill Construction | General Purpose |
| Measurement System | Imperial |
| Drill Style | Taper Shank Drill |
| Tool Size | 19/64" |
| Point Style | Radial |
| Drill Point Angle | 118 |
| Pack Qty | 1 |
| ECCN | EAR99 |
| UNSPSC | 20111614 |
| Flute Length | 3.125 |
| Surface Condition | Steam Oxide |
| Flute Length (mm) | 7.938 cm |
| Double Ended | No |
| Shank Length | 3.25 |
| Overall Length (mm) | 16.192 cm |
| Shank Configuration | #1 Morse Taper |
| Diameter (Decimal Inch) | 0.2969 |
| Set | No |
| Drill Size System | Fractional |
