Cleveland
C13830

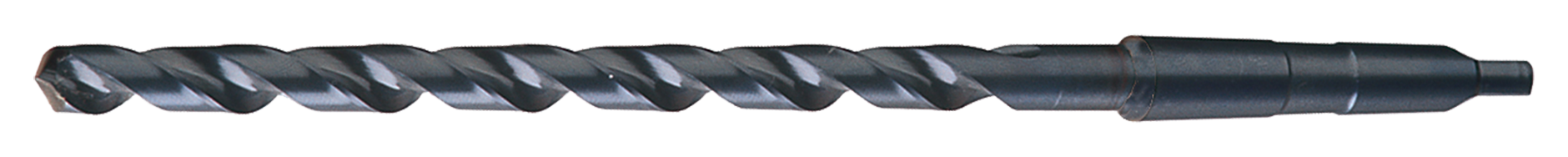

Extra Length Taper Shank Drill
Specifications
| Flute Length (Metric) | 203.2 |
|---|---|
| Material | HSS |
| Flute Length (Inch) | 8 |
| Overall Length (Metric) | 304.8 |
| Flute Type | Spiral |
| Diameter (Metric) | 12.3 |
| Short Description | Extra Length Taper Shank Drill |
| Diameter | 0.484375 |
| Point Type | Notched |
| Point Angle | 118 |
| Hand Of Spiral | Right |
| Shank Length (Metric) | 101.6 |
| Hand Of Spiral Cut | RHS / RHC |
| Drill Construction | General Purpose |
| Measurement System | Imperial |
| Drill Style | Taper Shank Drill |
| Tool Size | 31/64" |
| Point Style | Notched |
| Drill Point Angle | 118 |
| Pack Qty | 1 |
| ECCN | EAR99 |
| UNSPSC | 20111614 |
| Flute Length | 8 |
| Surface Condition | Steam Oxide |
| Flute Length (mm) | 20.32 cm |
| Double Ended | No |
| Shank Length | 4 |
| Overall Length (mm) | 30.48 cm |
| Diameter (Decimal Inch) | 0.4844 |
| Set | No |
| Drill Size System | Fractional |
