Cleveland
C14208

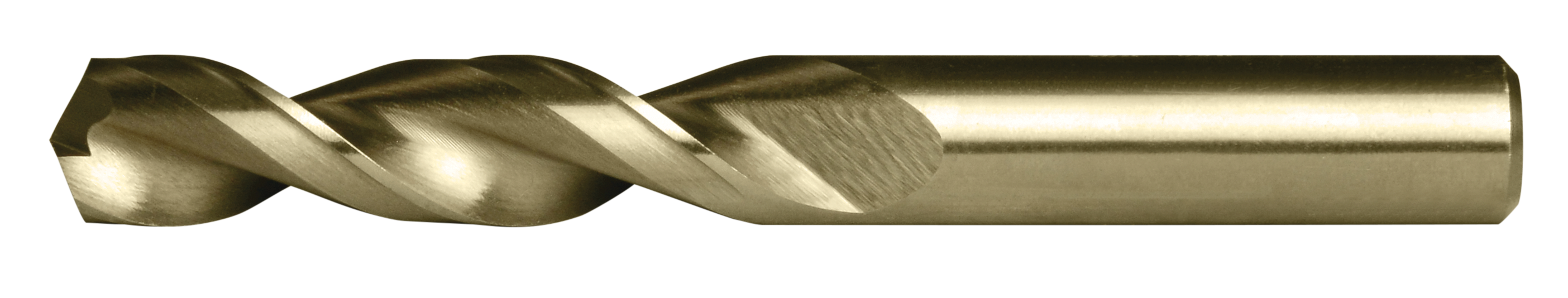

Q-Cobalt? Wide Land Parabolic Drill
Specifications
| Overall Length (Metric) | 55.56 |
|---|---|
| Diameter (Metric) | 4.76 |
| Point Angle | 135 |
| Flute Length (Metric) | 28.57 |
| Material | HSS-CO 8% (M42) |
| Short Description | Q-Cobalt? Wide Land Parabolic Drill |
| Shank Length (Inch) | 1.0625 |
| Flute Length | 1.125 |
| Shank Type | Straight |
| Shank Size | 0.1875 |
| Point Type | Split |
| Surface Condition | Straw |
| Flute Length (mm) | 2.857 cm |
| Drill Style | Screw Machine Drill |
| Double Ended | No |
| Shank Length | 1.0625 |
| UNSPSC | 20111614 |
| Overall Length (mm) | 5.556 cm |
| Flute Type | Spiral |
| Shank Configuration | Straight |
| Point Style | Split |
| Pack Qty | 10 |
| Hand Of Spiral | Right |
| Shank Length (Metric) | 26.99 |
| Measurement System | Imperial |
| Diameter (Decimal Inch) | 0.1875 |
| Shank Length (mm) | 26.99 |
| Shank Size (Metric) | 4.76 |
| Diameter | 0.1875 |
| Set | No |
| Drill Size System | Fractional |
| Drill Construction | Wide Land Parabolic |
| Hand Of Spiral Cut | RHS / RHC |
| Drill Point Angle | 135 |
| Tool Size | 3/16" |
| ECCN | EAR99 |
