Cleveland
C14234

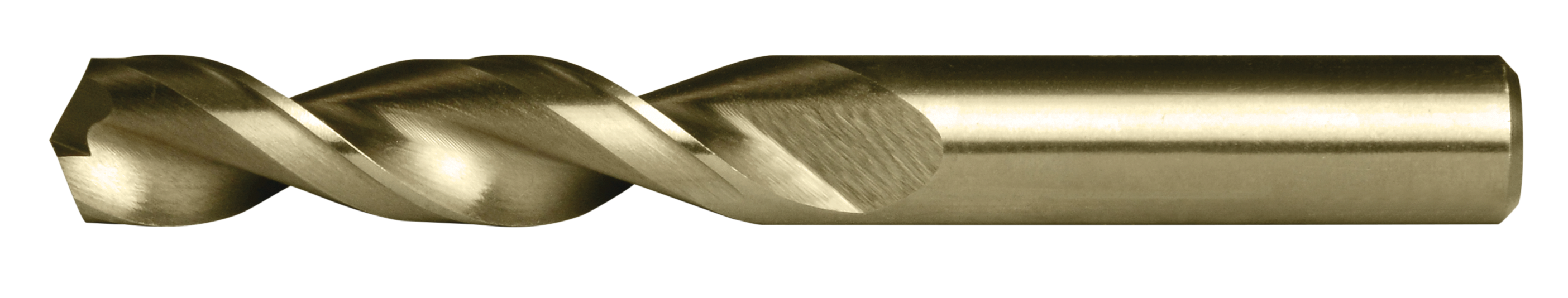

Q-Cobalt? Wide Land Parabolic Drill
Specifications
| Overall Length (Metric) | 104.77 |
|---|---|
| Diameter (Metric) | 15.08 |
| Point Angle | 135 |
| Flute Length (Metric) | 66.67 |
| Material | HSS-CO 8% (M42) |
| Short Description | Q-Cobalt? Wide Land Parabolic Drill |
| Shank Length (Inch) | 1.5 |
| Flute Length | 2.625 |
| Shank Type | Straight |
| Shank Size | 0.5938 |
| Point Type | Split |
| Surface Condition | Straw |
| Flute Length (mm) | 6.667 cm |
| Drill Style | Screw Machine Drill |
| Double Ended | No |
| Shank Length | 1.5 |
| UNSPSC | 20111614 |
| Overall Length (mm) | 10.477 cm |
| Flute Type | Spiral |
| Shank Configuration | Straight |
| Point Style | Split |
| Pack Qty | 1 |
| Hand Of Spiral | Right |
| Shank Length (Metric) | 38.1 |
| Measurement System | Imperial |
| Diameter (Decimal Inch) | 0.5938 |
| Shank Length (mm) | 38.1 |
| Shank Size (Metric) | 15.08 |
| Diameter | 0.59375 |
| Set | No |
| Drill Size System | Fractional |
| Drill Construction | Wide Land Parabolic |
| Hand Of Spiral Cut | RHS / RHC |
| Drill Point Angle | 135 |
| Tool Size | 19/32" |
| ECCN | EAR99 |
