Cleveland
C14546

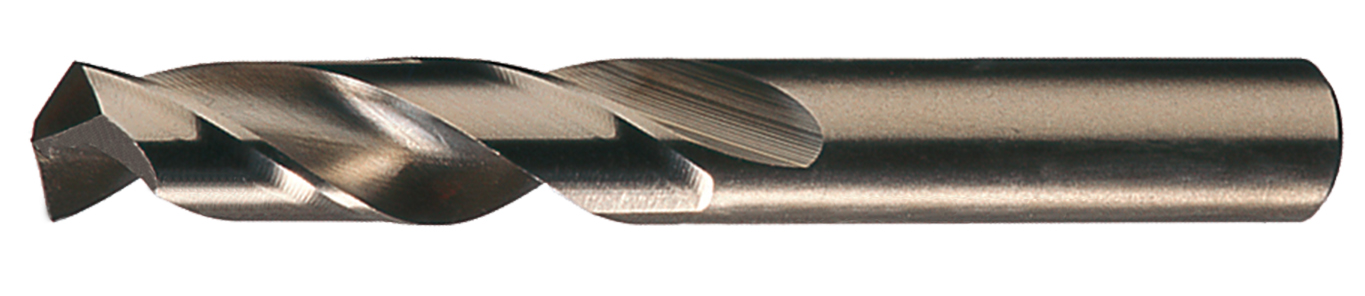

Cobalt Heavy-Duty Screw Machine Drill
Specifications
| Overall Length (Metric) | 44.45 |
|---|---|
| Diameter (Metric) | 2.26 |
| Point Angle | 135 |
| Flute Length (Metric) | 19.05 |
| Material | HSS-CO 8% (M42) |
| Short Description | Cobalt Heavy-Duty Screw Machine Drill |
| Shank Length (Inch) | 1 |
| Flute Length | 0.75 |
| Shank Type | Straight |
| Shank Size | 0.089 |
| Point Type | Split |
| Surface Condition | Straw |
| Diameter (Wire) | 43 |
| Notes | Sizes smaller than 0.0625 do not have split point |
| Flute Length (mm) | 1.905 cm |
| Drill Style | Screw Machine Drill |
| Double Ended | No |
| Shank Length | 1 |
| UNSPSC | 20111614 |
| Overall Length (mm) | 4.445 cm |
| Flute Type | Spiral |
| Shank Configuration | Straight |
| Point Style | Split |
| Pack Qty | 10 |
| Hand Of Spiral | Right |
| Shank Length (Metric) | 25.4 |
| Measurement System | Imperial |
| Diameter (Decimal Inch) | 0.089 |
| Shank Length (mm) | 25.4 |
| Shank Size (Metric) | 2.26 |
| Diameter | 0.089 |
| Set | No |
| Drill Size System | Wire |
| Drill Construction | Heavy-Duty |
| Hand Of Spiral Cut | RHS / RHC |
| Drill Point Angle | 135 |
| Tool Size | #43 |
| ECCN | EAR99 |
