Cleveland
C16875

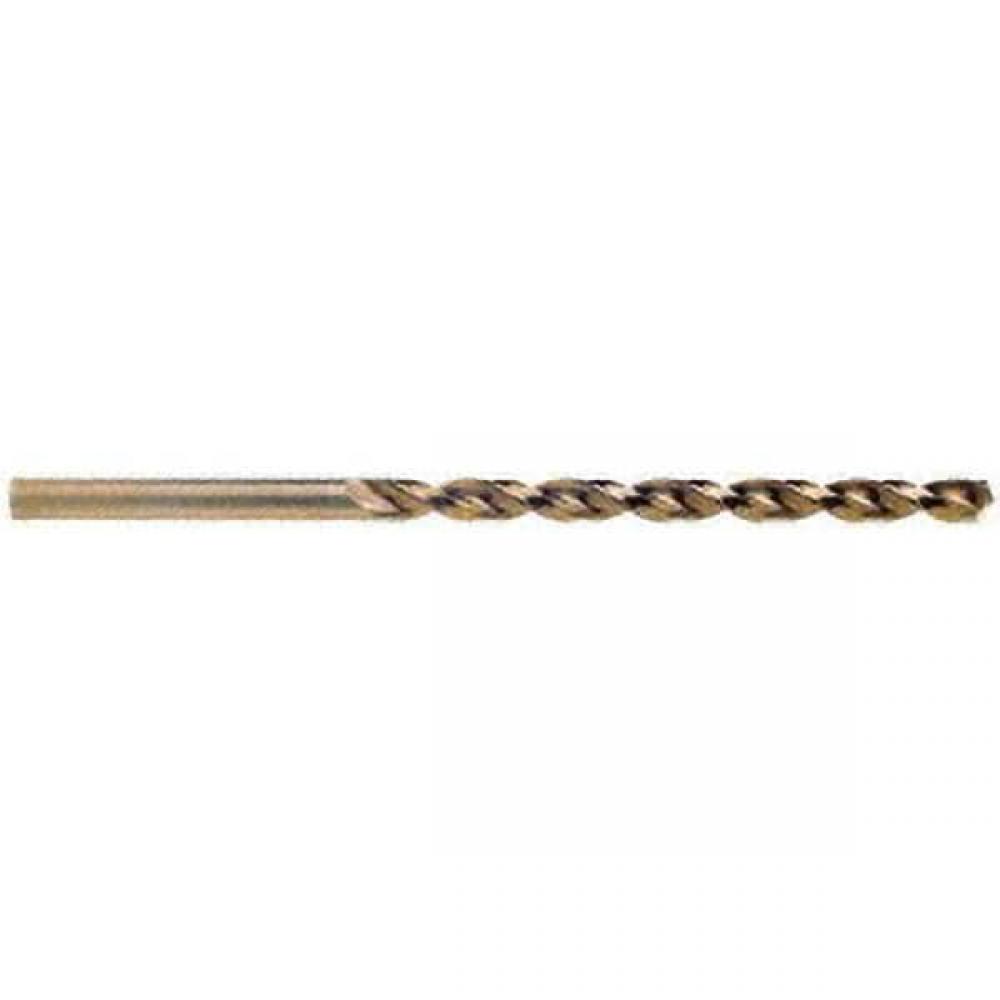

Q-Cobalt? Wide Land Parabolic Taper Length Drill
Specifications
| Shank Length (Inch) | 2 |
|---|---|
| Overall Length (Metric) | 107.95 |
| Shank Length (Metric) | 50.8 |
| Material | HSS-CO 8% (M42) |
| Diameter (Metric) | 2.26 |
| Shank Size (Metric) | 2.26 |
| Flute Length (Metric) | 57.15 |
| Diameter | 0.089 |
| Flute Length | 2.25 |
| Flute Type | Spiral |
| Shank Size | 0.089 |
| Shank Type | Straight |
| Point Type | Split |
| Diameter (Wire) | 43 |
| Point Angle | 135 |
| Hand Of Spiral | Right |
| Shank Length | 2 |
| Tool Size | #43 |
| Drill Point Angle | 135 |
| Shank Configuration | Straight |
| Drill Style | Taper Length Drill |
| Point Style | Split |
| Measurement System | Imperial |
| Double Ended | No |
| Hand Of Spiral Cut | RHS / RHC |
| Set | No |
| Pack Qty | 10 |
| ECCN | EAR99 |
| Notes | Sizes smaller than 0.0625 do not have split point |
| UNSPSC | 20111614 |
| Surface Condition | TiN |
| Flute Length (mm) | 5.715 cm |
| Overall Length (mm) | 10.795 cm |
| Diameter (Decimal Inch) | 0.089 |
| Shank Length (mm) | 50.8 |
| Drill Size System | Wire |
| Drill Construction | Wide Land Parabolic |
