Cleveland
C26191

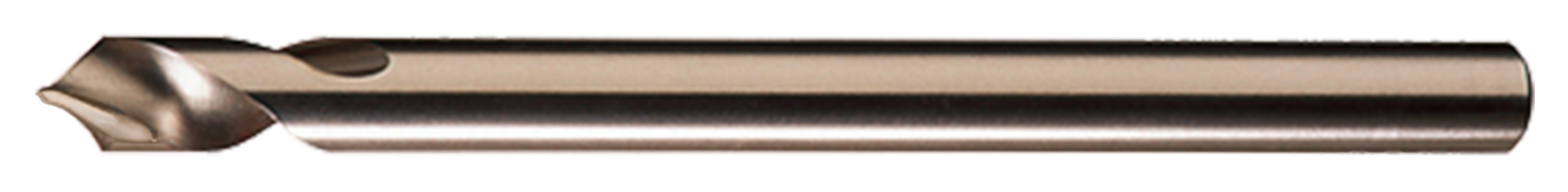

Cobalt NC Long Length Spotting and Centering Drill
Specifications
| Shank Size (Metric) | 15.88 |
|---|---|
| Overall Length (Metric) | 180.97 |
| Material | HSS-CO 8% (M42) |
| Flute Length (Metric) | 41.27 |
| Point Angle | 120 |
| Diameter (Metric) | 15.88 |
| Short Description | Cobalt NC Long Length Spotting and Centering Drill |
| Flute Type | Spiral |
| Hand Of Spiral | Right |
| Hand Of Spiral Cut | RHS / RHC |
| Shank Length (Metric) | 139.7 |
| Drill Construction | Spotting & Centering |
| Drill Style | Spotting Drill |
| ECCN | EAR99 |
| Set | No |
| Pack Qty | 1 |
| UNSPSC | 20111614 |
| Diameter | 0.625 |
| Measurement System | Imperial |
| Flute Length | 1.625 |
| Shank Size | 0.625 |
| Surface Condition | Straw |
| Shank Length | 5.5 |
| Overall Length (Decimal Inch) | 7.125 |
| Shank Configuration | Straight |
| Point Style | Radial |
| Diameter (Decimal Inch) | 0.625 |
| Drill Size System | Fractional |
| Tool Size | 5/8" |
