Cleveland
C46528

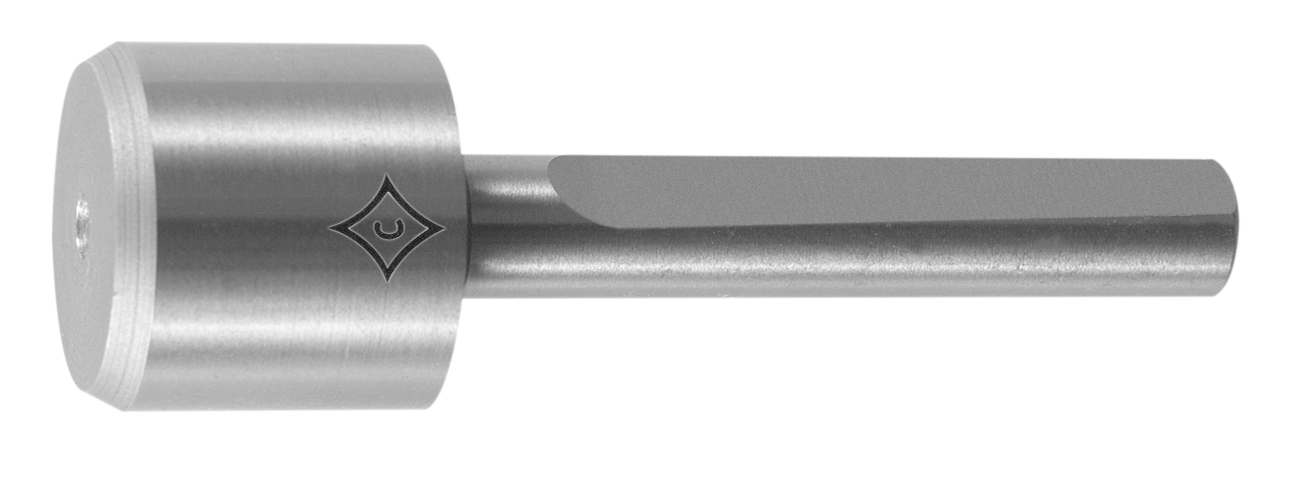

Interchangeable Counterbore Pilot
Specifications
| Overall Length (Metric) | 33.34 |
|---|---|
| Shank Size (Metric) | 2.38 |
| Short Description | Interchangeable Counterbore Pilot |
| Shank Size | 0.09375 |
| Surface Condition | Bright |
| Double Ended | No |
| UNSPSC | 23241603 |
| Overall Length (Decimal Inch) | 1.3125 |
| Diameter (Metric) | 3.97 |
| Shank Configuration | Straight |
| Pack Qty | 1 |
| Diameter (Decimal Inch) | 0.1563 |
| Diameter | 0.15625 |
| Set | No |
| Tool Size | 5/32" |
| ECCN | EAR99 |
