Cleveland
C46900

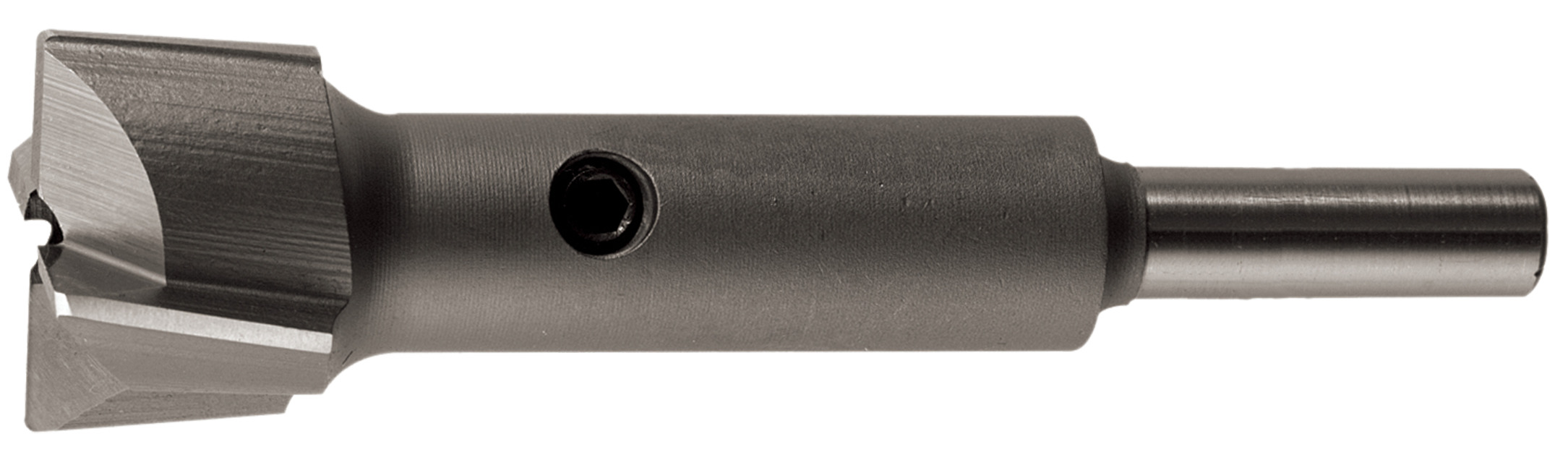

Short Aircraft Type Interchangeable Pilot Counterbore
Specifications
| Overall Length (Metric) | 71.45 |
|---|---|
| Shank Size (Metric) | 6.35 |
| Short Description | Short Aircraft Type Interchangeable Pilot Counterbore |
| Flute Length | 0.5 |
| Shank Size | 0.25 |
| Surface Condition | Bright |
| Notes | Aircraft Type Counterbores; Designed for aircraft fabrication use with portable pneumatic and electric drills; Smaller pilot holes than standard counterbores; Corner radius 1/32" is standard |
| Shank Length | 0.875 |
| UNSPSC | 23241603 |
| Overall Length (Decimal Inch) | 2.813 |
| Diameter (Metric) | 17.46 |
| Shank Configuration | Straight |
| Pack Qty | 1 |
| Diameter (Decimal Inch) | 0.6875 |
| Diameter | 0.6875 |
| Set | No |
| Hand Of Spiral Cut | RHS / RHC |
| Tool Size | 11/16" |
| ECCN | EAR99 |
