Cleveland
C54292

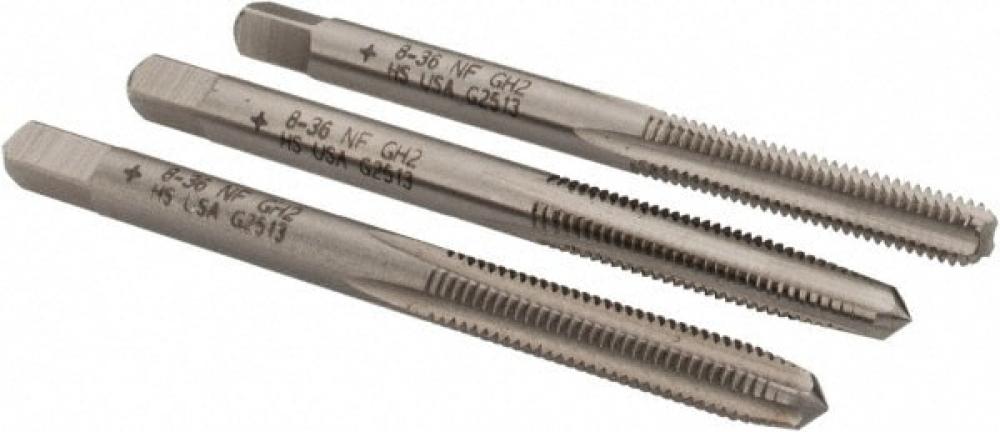

Taper, Plug, and Bottoming Hand Tap Set
Specifications
| Overall Length (Metric) | 54.1 |
|---|---|
| Diameter (Metric) | 4.17 |
| Thread Size Decimal Equiv | 0.164 |
| Flute Type | Straight |
| Shank Size (Metric) | 4.27 |
| Tap Blank Construction | USCTI Table 302 |
| Tap Construction | Standard |
| Tap Ground Threads | Yes |
| Tap Neck Length | 0.39 |
| Thread Pitch | 36 |
| Tap Style | Straight Flute Hand Tap |
| Tap Type | Hand Tap |
| Tap Interrupted Thread | No |
| Shank Square Length | 0.25 |
| Pack Qty | 1 |
| Double Ended | No |
| ECCN | EAR99 |
| Set | Yes |
| Tap Spiral Point | No |
| Tap Truncated Threads | No |
| UNSPSC | 27112806 |
| Diameter | 0.164 |
| Shank Size | 0.168 |
| Surface Condition | Bright |
| Overall Length (Decimal Inch) | 2.13 |
| Overall Length (mm) | 5.41 cm |
| Tap Limit | H2 |
| Thread Length | 0.38 |
| Shank Configuration | Straight w/ Square |
| Thread Form | UNF |
| Measurement System | Imperial |
| Diameter (Decimal Inch) | 0.164 |
| Application | General Purpose |
| Tool Size | #8-36 UNF |
