Cleveland
C56010

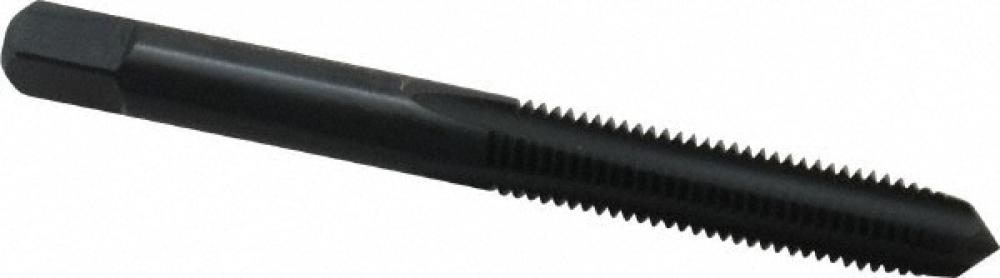

Plug Chamfer General Purpose Hand Tap
Specifications
| Overall Length (Metric) | 63.5 |
|---|---|
| Diameter (Metric) | 6.35 |
| Thread Size Decimal Equiv | 0.25 |
| Flute Type | Straight |
| Thread Tolerance | 2B |
| Diameter (Wire) | E |
| Shank Size (Metric) | 6.48 |
| Operation Type | Blind Hole |
| Tap Blank Construction | USCTI Table 302A |
| Tap Construction | Standard |
| Tap Ground Threads | Yes |
| Tap Neck Length | 0.39 |
| Thread Pitch | 28 |
| Tap Style | Straight Flute Hand Tap |
| Tap Type | Hand Tap |
| Thread Creation | Thread Cutting |
| Tap Interrupted Thread | No |
| Shank Square Length | 0.3125 |
| Pack Qty | 1 |
| Double Ended | No |
| ECCN | EAR99 |
| Set | No |
| Tap Spiral Point | No |
| Tap Truncated Threads | No |
| UNSPSC | 27112806 |
| Diameter | 0.25 |
| Shank Size | 0.255 |
| Surface Condition | Steam Oxide |
| Overall Length (Decimal Inch) | 2.5 |
| Overall Length (mm) | 6.35 cm |
| Tap Limit | H3 |
| Thread Length | 0.63 |
| Shank Configuration | Straight w/ Square |
| Thread Form | UNF |
| Measurement System | Imperial |
| Diameter (Decimal Inch) | 0.25 |
| Application | General Purpose |
| Depth of Cut | 2 |
| Tool Size | 1/4-28 UNF |
