Cleveland
C56050

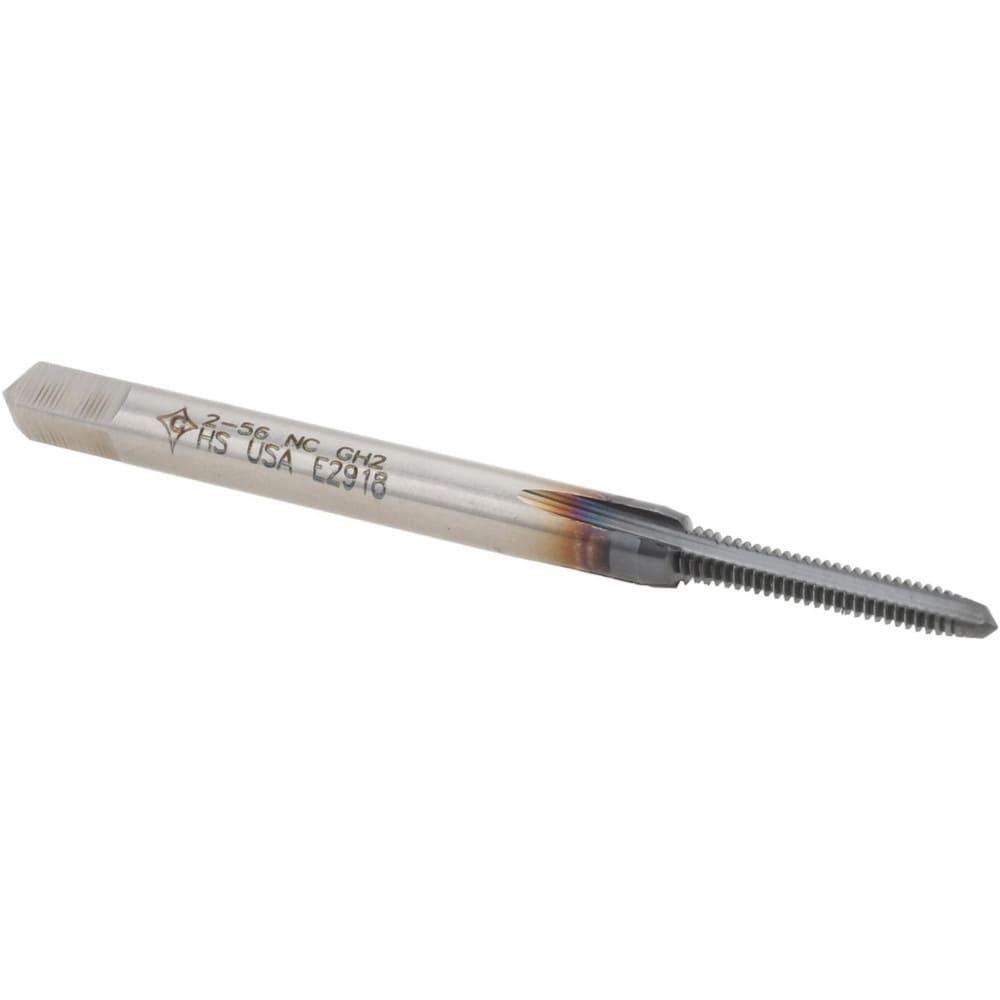

Plug Chamfer General Purpose Hand Tap
Specifications
| Overall Length (Metric) | 44.45 |
|---|---|
| Diameter (Metric) | 2.18 |
| Thread Size Decimal Equiv | 0.086 |
| Flute Type | Straight |
| Thread Tolerance | 2B |
| Diameter (Wire) | 44 |
| Shank Size (Metric) | 3.58 |
| Operation Type | Blind Hole |
| Tap Blank Construction | USCTI Table 302A |
| Tap Construction | Standard |
| Tap Ground Threads | Yes |
| Thread Pitch | 56 |
| Tap Style | Straight Flute Hand Tap |
| Tap Type | Hand Tap |
| Thread Creation | Thread Cutting |
| Tap Interrupted Thread | No |
| Shank Square Length | 0.1875 |
| Pack Qty | 1 |
| Double Ended | No |
| ECCN | EAR99 |
| Set | No |
| Tap Spiral Point | No |
| Tap Truncated Threads | No |
| UNSPSC | 27112806 |
| Diameter | 0.086 |
| Shank Size | 0.141 |
| Surface Condition | TiCN |
| Overall Length (Decimal Inch) | 1.75 |
| Overall Length (mm) | 4.445 cm |
| Tap Limit | H2 |
| Thread Length | 0.4375 |
| Shank Configuration | Straight w/ Square |
| Thread Form | UNC |
| Measurement System | Imperial |
| Diameter (Decimal Inch) | 0.086 |
| Application | General Purpose |
| Depth of Cut | 2 |
| Tool Size | #2-56 UNC |
