Cleveland
C57023

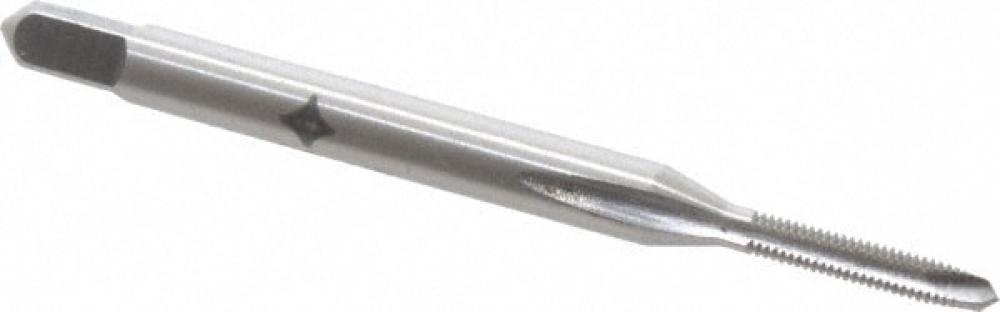

Plug Chamfer Spiral Point Tap
Specifications
| Diameter (Metric) | 1.85 |
|---|---|
| Overall Length (Metric) | 42.86 |
| Thread Tolerance | 2B |
| Diameter | 0.073 |
| Flute Type | Straight |
| Diameter (Wire) | 49 |
| Shank Size (Metric) | 3.58 |
| Operation Type | Thru Hole |
| Tap Blank Construction | USCTI Table 302A |
| Tap Construction | Standard |
| Tap Ground Threads | Yes |
| Tap Spiral Point | Yes |
| Thread Pitch | 72 |
| Thread Size Decimal Equiv | 0.073 |
| Tap Style | Spiral Point Tap |
| Square Size (Decimal Inch) | 0.1875 |
| Tap Interrupted Thread | No |
| Tap Truncated Threads | No |
| Tap Type | Machine Tap |
| Thread Creation | Thread Cutting |
| Double Ended | No |
| ECCN | EAR99 |
| Shank Configuration | Straight w/ Square |
| Pack Qty | 1 |
| Set | No |
| UNSPSC | 27112806 |
| Shank Size | 0.141 |
| Surface Condition | Bright |
| Overall Length (Decimal Inch) | 1.6875 |
| Overall Length (mm) | 4.286 cm |
| Tap Limit | H1 |
| Shank Square Length | 0.1875 |
| Thread Length | 0.375 |
| Thread Form | UNF |
| Measurement System | Imperial |
| Diameter (Decimal Inch) | 0.073 |
| Application | General Purpose |
| Depth of Cut | 2 |
| Tool Size | #1-72 UNF |
