Cleveland
C60429

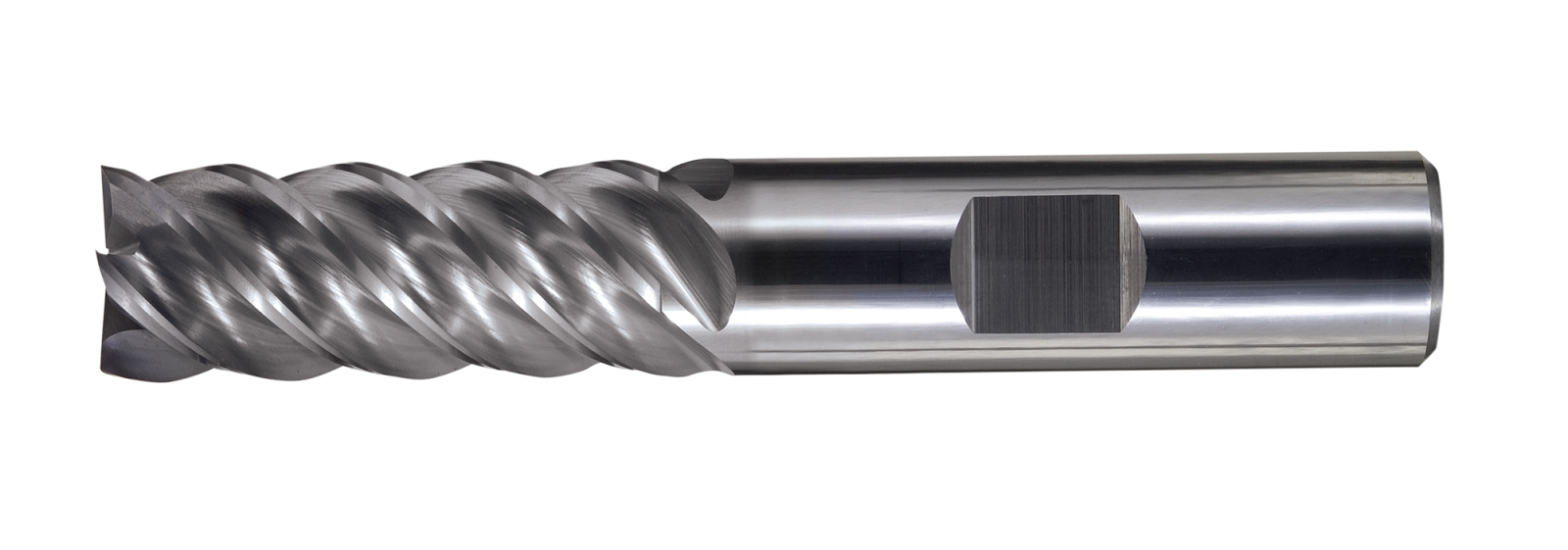

5-Flute High-Performance End Mill for Steel
Specifications
| Overall Length (Metric) | 50.8 |
|---|---|
| Flute Type | Spiral |
| Material | Carbide |
| Double Ended | No |
| Diameter (Metric) | 7.14 |
| Shank Size (Metric) | 7.94 |
| Short Description | 5-Flute High-Performance End Mill for Steel |
| Shank Size | 0.3125 |
| Hand Of Spiral | Right |
| Mill Construction | High Helix for Hardened Steel & Stainless Steel |
| Center Cutting | true |
| Mill End Style | Square |
| Tool Size | 9/32" x 5/16" x 7/16" x 2" |
| ECCN | EAR99 |
| Hand Of Spiral Cut | RHS / RHC |
| Pack Qty | 1 |
| Set | No |
| UNSPSC | 27112803 |
| Diameter | 0.2812 |
| Surface Condition | Bright |
| Overall Length (Decimal Inch) | 2 |
| Shank Configuration | Straight |
| Diameter (Decimal Inch) | 0.2812 |
